The TK20P04M1 is a P-Channel Power MOSFET from Toshiba Semiconductor and Storage. It is designed for applications requiring efficient power switching with a focus on low on-resistance and gate charge.

Applications:

• DC-DC Converters
• Load Switching
• Power Management Circuits
• Motor Control Circuits

Features:

• P-Channel MOSFET
• Low On-Resistance: RDS(on) = 0.045 Ω (Max) at VGS = -10V
• Low Gate Charge
• High-Speed Switching
• Pb-free
• RoHS Compliant

Benefits:

• Reduced power losses and improved efficiency in power conversion applications due to low on-resistance.
• Minimized switching losses thanks to low gate charge characteristics.
• Fast switching for efficient operation in high-frequency circuits.
• Environmentally friendly due to Pb-free construction.

Detailed Specifications:

• Drain-Source Voltage (VDSS): -40V
• Gate-Source Voltage (VGS): ±20V
• Continuous Drain Current (ID): -20A
• Pulsed Drain Current (IDM): -80A
• Single Pulse Avalanche Energy (EAS): Not Specified
• Operating and Storage Temperature Range: -55 to +175 °C
• Maximum Power Dissipation (PD): 40W

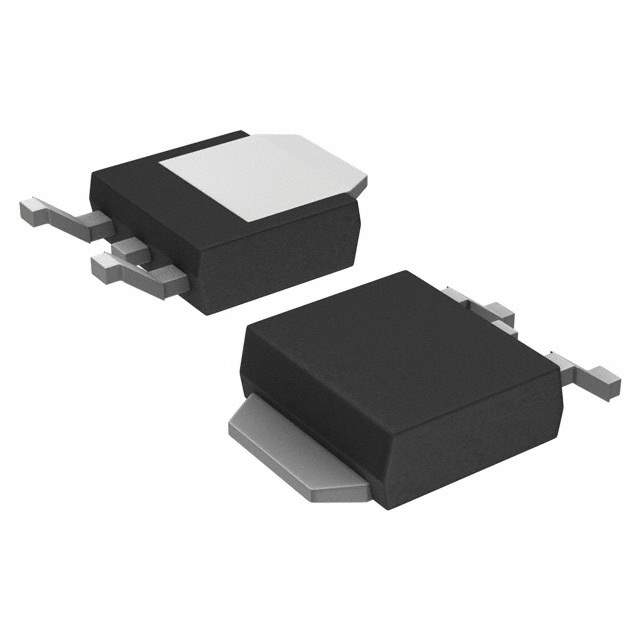

The TK20P04M1 is an excellent choice for power management applications where efficiency is paramount. The low on-resistance and gate charge work together to minimize both conduction and switching losses. Its P-Channel configuration is useful for high-side switching applications. The device is available in a surface mount package.
