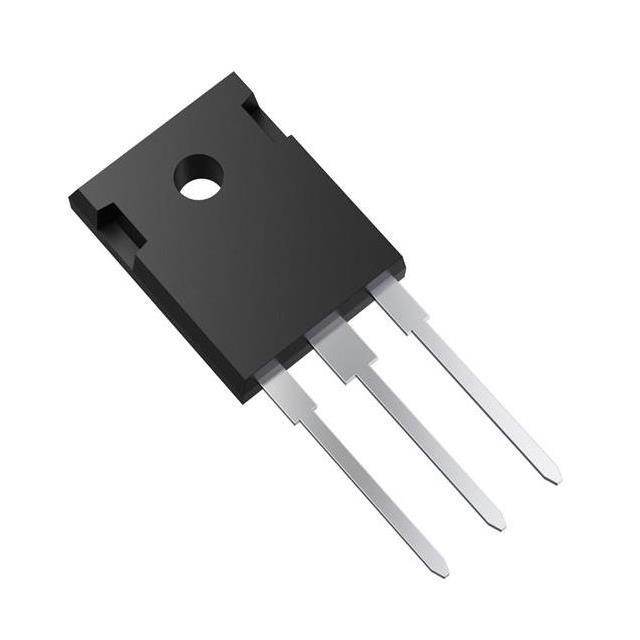

Same model may have multiple batches, images only for reference.
TK62N60W5,S1VF Toshiba Semiconductor and Storage – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TK62N60W5,S1VF

Part No TK62N60W5,S1VF
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors – FETs, MOSFETs – Single
Description PB-F POWER MOSFET TRANSISTOR TO-
Datasheet
TK62N60W5,S1VF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 61.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 45mOhm @ 30.9A, 10V
Vgs(th) (Max) @ Id 4.5V @ 3.1mA
Gate Charge (Qg) (Max) @ Vgs 205 nC @ 10 V
Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 6500 pF @ 300 V
Power Dissipation (Max) 400W (Tc)
Operating Temperature 150°C
Mounting Type Through Hole
Supplier Device Package TO-247
Package / Case TO-247-3
Ultra Librarian 3D Model Ultra Librarian TK62N60W5,S1VF CAD Model
