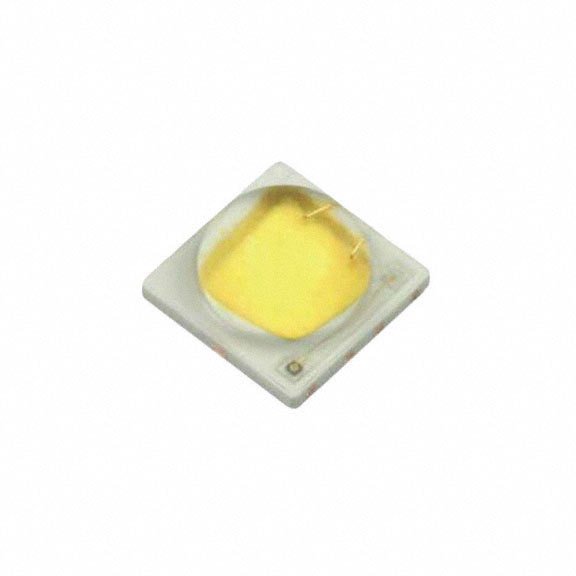

TL1L4-NW1,L Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TL1L4-NW1,L

Part No TL1L4-NW1,L
Manufacturer Toshiba Semiconductor and Storage
Catalog LED Lighting - White
Description LED LETERAS COOL WHT 5000K 2SMD
Datasheet
TL1L4-NW1,L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 135 lm (120 lm to 150 lm)
Current - Test 350mA
Forward Voltage 2.8V
Lumens/Watt @ Current - Test 138 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.5A
Viewing Angle 120°
Mounting SMD (SMT)
Case / Package 3535
Height - Seated (Max) 0.085" (2.15mm)
Thermal Resistance of Package 5°C/W
Win Source Part Number 1107646-TL1L4-NW1,L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TL1L4-NW1,L CAD Model

Description

The Toshiba TL1L4-NW1,L is an optoelectronic component that emits cool white light.

  • Height: 0.085"
  • Mounting: Surface-mount device (SMD)
  • Maximum Current: 1.5A
  • Forward Voltage: 2.8V
  • Viewing Angle: 120°
  • CCT: 5000K
  • Flux: 135 lm @ 85°C
  • Current Test: 350mA
  • Lumens/Watt: 138 lm/W
  • CRI: 80
  • Thermal Resistance: 5°C/W
  • Supply and Demand Status: Balanced
