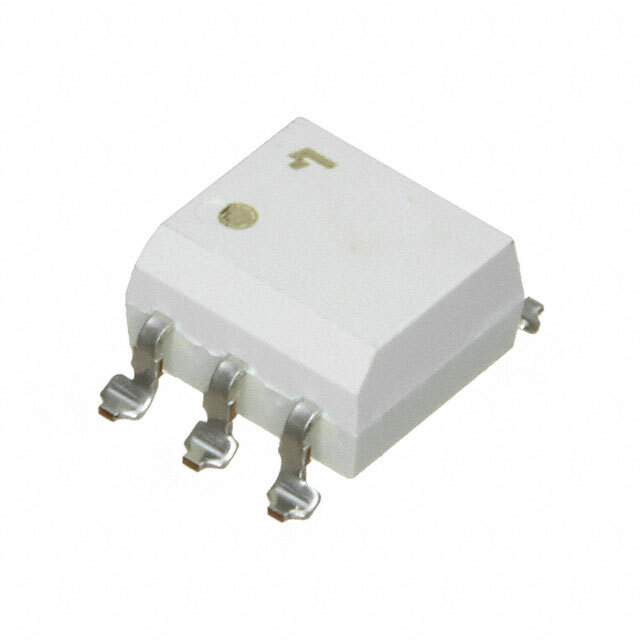

The TLP3543A(TP1F(O) is a photocoupler manufactured by Toshiba Semiconductor and Storage. It is designed to provide electrical isolation between circuits, enabling safe and reliable signal transmission. This photocoupler is typically used in applications requiring isolation between a control circuit and a high-voltage or high-current circuit.

Applications:

• Inverter control circuits
• AC servo drives
• Programmable logic controllers (PLCs)
• Switching power supplies
• Industrial control systems

Features:

• High isolation voltage
• High-speed switching
• Low input current
• Small package size
• RoHS compliant

Benefits:

• Provides electrical isolation for safety and protection of control circuits.
• Enables high-speed data transmission between isolated circuits.
• Reduces power consumption due to low input current requirements.
• Saves board space with its compact design.

Additional Details:

The TLP3543A(TP1F(O) photocoupler typically features a high isolation voltage, often in the range of several kilovolts. It is designed for high-speed switching applications and has a low input current requirement. The exact specifications can be found in the Toshiba datasheet. The (TP1F(O) designation refers to a specific tape and reel packaging option. These devices are crucial components in applications where electrical safety and isolation are paramount, such as in industrial automation and power electronics.
