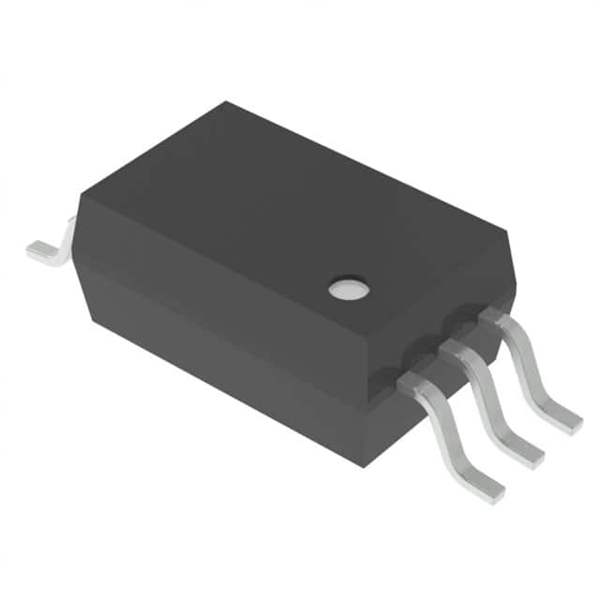

TLP5701(TP,E

Name: TLP5701(TP,E
Brand: Toshiba Semiconductor and Storage
SKU: 993727
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLP5701(TP,E
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Optoisolators - Logic Output
Description	X36 PB-F DRIVER COUPLER 0.6A SO6 / Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Logic Output
Mfr	Toshiba Semiconductor and Storage
Package	Tape & Reel (TR)
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	600 mA
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Rise / Fall Time (Typ)	50ns, 50ns
Voltage - Forward (Vf) (Typ)	1.57V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	10V ~ 30V
Temperature Range - Operating	-40°C ~ 110°C
Mounting	SMD (SMT)
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
Base Product Number	TLP5701
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.49.8000
Other Names	TLP5701(TPE
Standard Package	1,500
Win Source Part Number	993727-TLP5701(TP,E
Ultra Librarian 3D Model	Ultra Librarian TLP5701(TP,E CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TLP5701(TP,E is an optoisolator with a push-pull, totem pole output type and a DC input type.

Output Type: Push-Pull, Totem Pole
Input Type: DC
Forward Current (Max): 25mA
Forward Voltage: 1.57V
Rise/Fall Time: 50ns, 50ns
Current Output/Channel: 600mA
Voltage Isolation: 5000Vrms
Common Mode Transient Immunity: 20kV/μs
Propagation Delay tpLH/tpHL: 500ns, 500ns
Package: 6-SOIC
Operating Temperature Range: -40°C ~ 110°C
