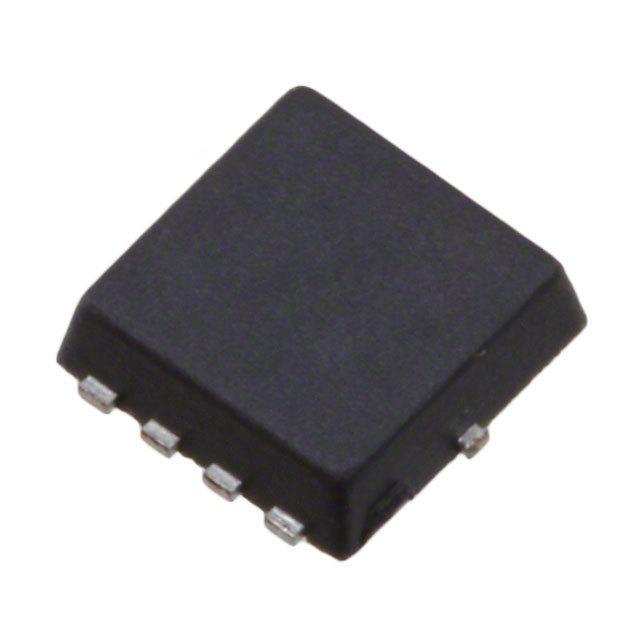

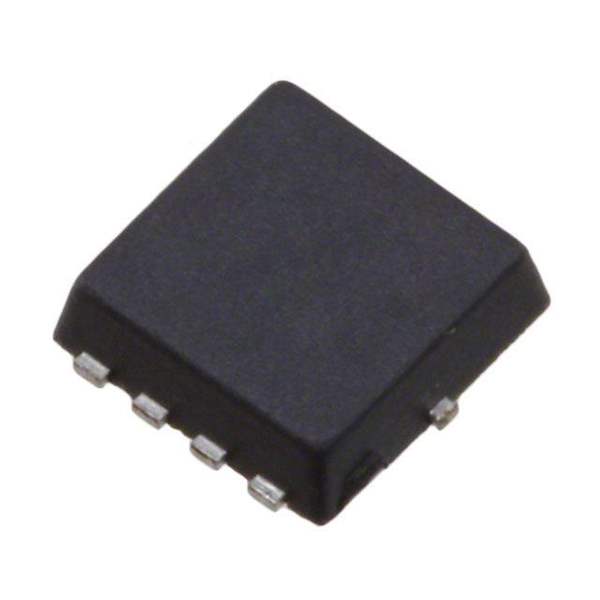

TPN11006NL,LQ

Name: TPN11006NL,LQ
Brand: Toshiba Semiconductor and Storage
SKU: 757633
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPN11006NL,LQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 17A 8TSON
Datasheet	TPN11006NL,LQ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Packaging	Reel - TR
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	60V
Current - Continuous Drain (Id) @ 25°C	17A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Maximum) @ Id	2.5V @ 200μA
Gate Charge (Qg) (Maximum) @ Vgs	23nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	2000pF @ 30V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	700mW (Ta), 30W (Tc)
Rds On (Maximum) @ Id, Vgs	11.4 mOhm @ 8.5A, 10V
Operating Temperature Range	150°C (TJ)
Mounting	SMD
Manufacturer Package	8-TSON Advance (3.3x3.3)
Package	8-PowerVDFN
Manufacturer Homepage	www.semicon.toshiba.co.jp/eng
Win Source Part Number	757633-TPN11006NL,LQ
Popularity	Medium
Supply and Demand Status	Balance
Family Name	TPN11006NL
Country of Origin	China
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian TPN11006NL,LQ CAD Model

Alternative Products

Description

The TPN11006NL, LQ is a medium-popularity MOSFET electronic component from Toshiba Semiconductor and Storage that belongs to the U-MOSVIII-H series.

Series: U-MOSVIII-H
Package: 8-PowerVDFN
Mounting Technology: SMD
Current Continuous Drain (Id) @ 25°C: 17A (Tc)
Maximum Power Dissipation: 700mW (Ta), 30W (Tc)
Estimated EOL Date: 2028
