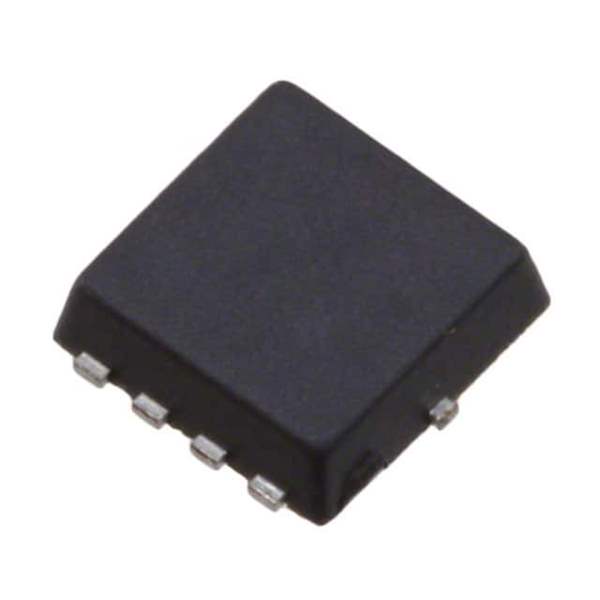

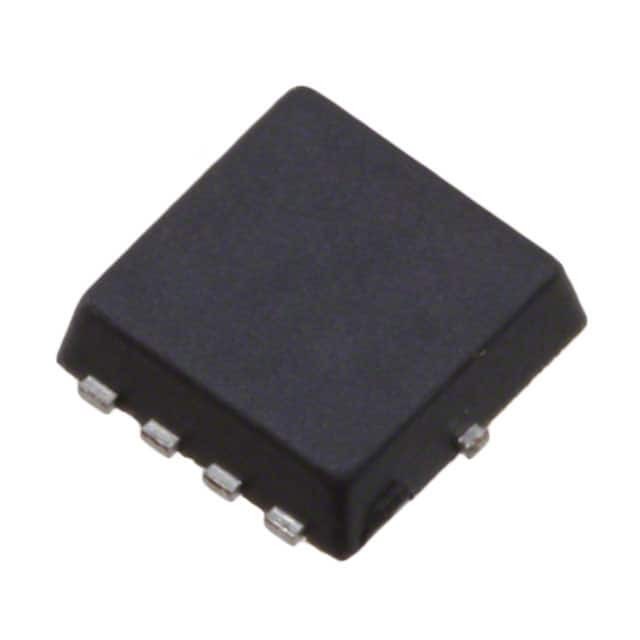

TPN30008NH,LQ

Get a Quote

Part No	TPN30008NH,LQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 80V 9.6A 8TSON / N-Channel 80 V 9.6A (Tc) 700mW (Ta), 27W (Tc) Surface Mount 8-TSON Advance (3.3x3.3)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	9.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	30mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id	4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	920 pF @ 40 V
Power Dissipation (Max)	700mW (Ta), 27W (Tc)
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	8-TSON Advance (3.3x3.3)
Package / Case	8-PowerVDFN
Base Product Number	TPN30008
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	TPN30008NHLQDKR,TPN30008NHLQ,TPN30008NHLQCT,TPN30008NH,LQ(S,TPN30008NHLQTR
Standard Package	3,000
Win Source Part Number	1209507-TPN30008NH,LQ
Ultra Librarian 3D Model	Ultra Librarian TPN30008NH,LQ CAD Model

Alternative Products

Description

The U-MOSVIII-H series MOSFET transistor by Toshiba Semiconductor and Storage has a Win Source Part Number of 1209507-TPN30008NH,LQ.

FET Type: N-Channel
Package: 8-PowerVDFN
Drain to Source Voltage: 80 V
Current Continuous Drain: 9.6A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 30mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id: 4V @ 100μA
Power Dissipation (Max): 700mW (Ta), 27W (Tc)
Gate Charge (Qg) (Max) @ Vgs: 11 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 920 pF @ 40 V
Maximum Vgs: ±20V
Operating Temperature: 150°C (TJ)
RoHS Compliant: Yes
Radiation Hardening: No
MSL Level: 1 (Unlimited)
HTSUS: 8541.29.0095
