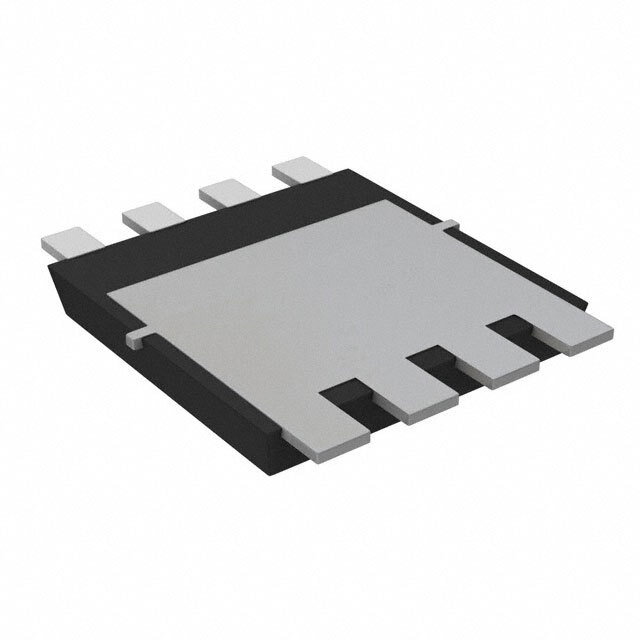

TPWR8004PL,L1Q Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TPWR8004PL,L1Q

Part No TPWR8004PL,L1Q
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 150A 8DSOP / N-Channel 40 V 150A (Tc) 1W (Ta), 170W (Tc) Surface Mount 8-DSOP Advance
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Toshiba Semiconductor and Storage
Series U-MOSIX-H
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 150A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 0.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 103 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 9600 pF @ 20 V
Power Dissipation (Max) 1W (Ta), 170W (Tc)
Temperature Range - Operating 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 8-DSOP Advance
Package / Case 8-PowerWDFN
Base Product Number TPWR8004
Other Names TPWR8004PLL1QDKR,TPWR8004PL,L1Q(M,TPWR8004PLL1QTR,TPWR8004PLL1QCT
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1277950-TPWR8004PL,L1Q
Ultra Librarian 3D Model Ultra Librarian TPWR8004PL,L1Q CAD Model

Description

The TPWR8004PL N-channel MOSFET is a member of the U-MOSIX-H series, designed for use in discrete semiconductor products, specifically transistors.

  • Drain to Source Voltage (Vdss): 40V
  • Continuous Drain Current (Id): 150A (Tc)
  • Rds On (Max): 0.8mOhm @ 50A, 10V
  • Gate Charge (Qg) (Max): 103 nC @ 10V
  • Input Capacitance (Ciss) (Max): 9600 pF @ 20V
  • Vgs (Max): ±20V
  • Package: 8-PowerWDFN
  • Mounting Technology: SMD (SMT)
