Same model may have multiple batches, images only for reference.

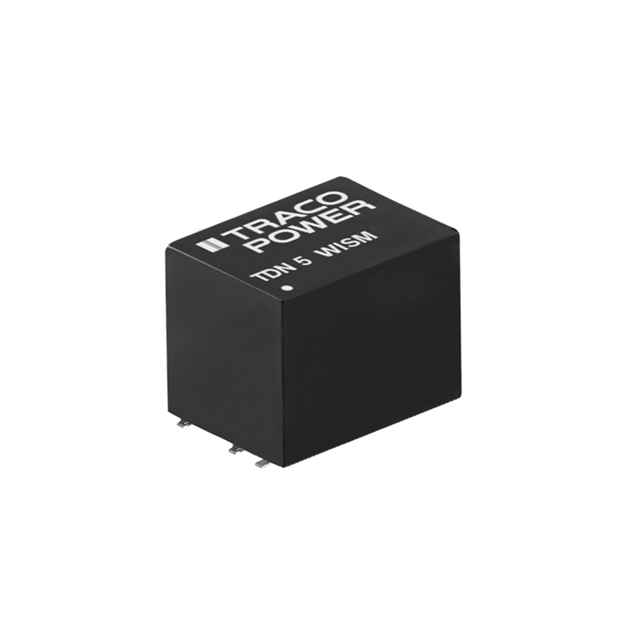

TDN 5-2421WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 5-2421WISM

Part No TDN 5-2421WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 9V - 36V Input
Datasheet
TDN 5-2421WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 500mA, 500mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 80%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency UL
Standard Number 60950-1; 62368-1
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2435
Standard Package 10
Win Source Part Number 1335463-TDN 5-2421WISM
Ultra Librarian 3D Model Ultra Librarian TDN 5-2421WISM CAD Model

Description

The Traco Power TDN 5-2421WISM is a 5W isolated module DC-DC converter with remote on/off and SCP features.

  • Voltage Isolation: 1.6 kV
  • Maximum Current Output: 500mA
  • Number of Outputs: 2
  • Output Voltage: 5V and -5V
  • Efficiency: 80%
  • Operating Temperature: -40°C to 75°C (with derating)
  • RoHS3 Compliant: Yes
  • Application: ITE (commercial)
  • Size Dimension: 0.52 inches L x 0.36 inches W x 0.40 inches H (13.2mm x 9.1mm x 10.2mm)
  • Packaging: Tube
