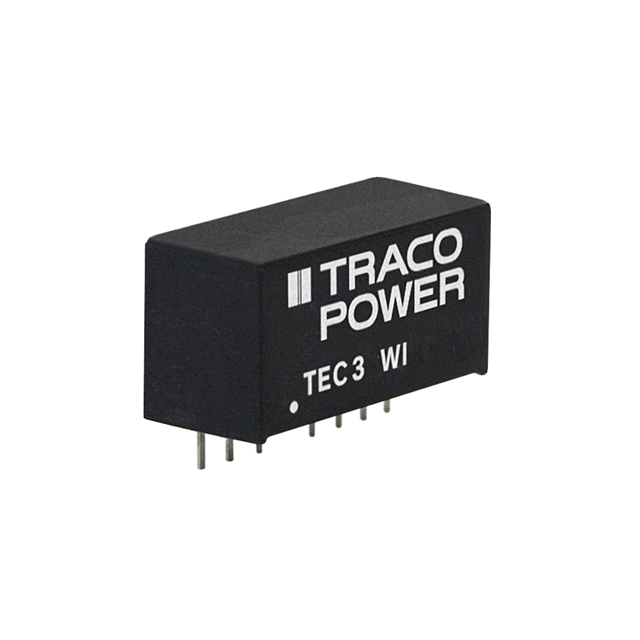

Traco Power DC DC Converters are isolated modules that provide a stable power source for various applications.

• Packaging: Tube
• Features: Remote on/off and SCP
• Size/Dimension: 0.86 inches L x 0.36 inches W x 0.44 inches H (21.8mm x 9.1mm x 11.2mm)
• Applications: ITE (Commercial)
• Standard Package: 10
• Mounting Style: Through hole
• Power Output: 3W
• Voltage Isolation: 1.6kV
• Number of Outputs: 1
• Current Output (max): 250mA
• Voltage Input (min): 4.5V
• Voltage Input (max): 18V
• Voltage Output 1: 12V
• Efficiency: 82%
• Temperature Range: -40 degrees Celsius to 90 degrees Celsius (with derating)
• Case/Package: 8-SIP Module, 7 Leads
• MSL Level: Not applicable
• ROHS3 Compliant: Yes
