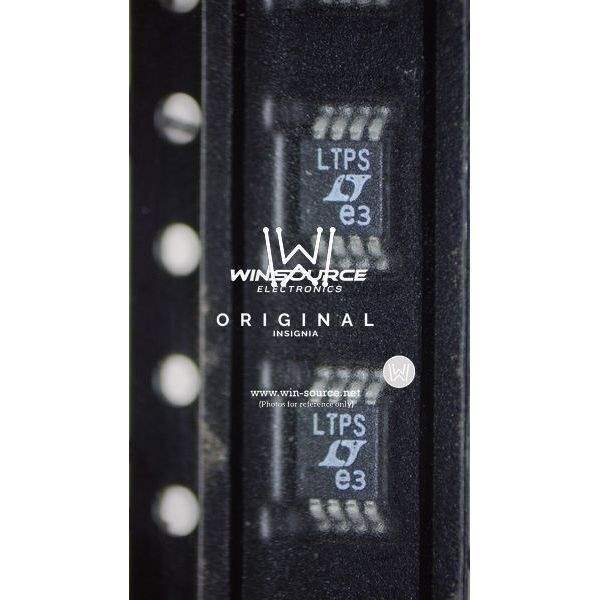

LT1962EMS8-3.3#TRPBF: Low-Noise, Low-Dropout Linear Regulator

The LT1962EMS8-3.3#TRPBF is a high-performance, low-dropout linear regulator from Linear Technology, designed to deliver a fixed output of 3.3 volts. This robust regulator offers an exceptional low-noise operation, making it an ideal choice for sensitive RF and analog circuitry that requires a clean power supply. With its wide input voltage range and the ability to deliver up to 300mA of continuous output current, this device is versatile for various applications.

Encased in an MSOP-8 package, the LT1962EMS8-3.3#TRPBF boasts a low dropout voltage of just 250mV at full load, which enhances its efficiency and allows it to operate effectively even when the input-to-output voltage differential is minimal. This characteristic is particularly beneficial in battery-powered devices, where maximizing the use of available battery voltage is crucial.

The regulator's low noise output is one of its standout features, with a typical output noise of only 20µV RMS over a 10Hz to 100kHz bandwidth. This low-noise performance is achieved without the need for an additional noise bypass capacitor, which is often required by other regulators to achieve similar noise levels. However, for applications demanding even lower noise levels, the option to add an external bypass capacitor is available.

Furthermore, the LT1962EMS8-3.3#TRPBF offers excellent transient response and stability with low-ESR ceramic capacitors, making it suitable for modern, compact electronic assemblies. Its built-in protection features include thermal shutdown, current limiting, and reverse battery protection, ensuring the long-term reliability of both the regulator and the system it powers.

With its no-load quiescent current of 30µA and a shutdown current of less than 1µA, the LT1962EMS8-3.3#TRPBF is also an energy-efficient solution, helping to extend the battery life in portable applications. Whether used in portable instruments, microprocessor power supplies, or wireless devices, the LT1962EMS8-3.3#TRPBF offers a combination of performance and reliability that is hard to match.

Overall, the LT1962EMS8-3.3#TRPBF from Linear Technology is an excellent choice for designers looking for a high-quality, low-noise, and reliable voltage regulator for their critical applications.
