Same model may have multiple batches, images only for reference.

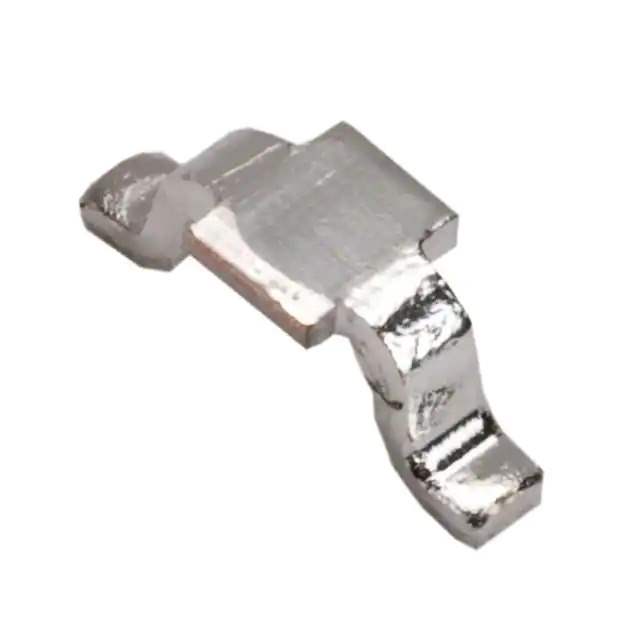

S1731-46R Real Image
Same model may have multiple batches, images only for reference.

S1731-46R

Part No S1731-46R
Manufacturer Harwin Inc.
Catalog Shunts, Jumpers
Description JUMPER TIN SMD / 2 (1 x 2) Position Shunt Connector Non-Insulated 0.119" (3.02mm) Tin
Datasheet
S1731-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Shunts, Jumpers
Mfr Harwin Inc.
Series EZ BoardWare
Package Tape & Reel
Product Status Active
Type Non-Insulated
Gender Non-Gendered
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.119" (3.02mm)
Height 0.100" (2.54mm)
Contact Finish Tin
Contact Finish Thickness 118.1µin (3.00µm)
Current Rating (Amps) 10A
Base Product Number S1731
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 892795-S1731-46R
Ultra Librarian 3D Model Ultra Librarian S1731-46R CAD Model

Description

The 892795-S1731-46R is a non-insulated shunt or jumper manufactured by Harwin Inc. It is part of the EZ BoardWare series and features a pitch of 0.119 inches (3.02mm).

  • Pitch: 0.119 inches (3.02mm)
  • Contact Finish: Tin
  • Finish Thickness: 118.1µin (3.00µm)
  • Package: Tape and Reel
  • Packaging Quantity: 2,500 pieces per standard package
  • Gender: Genderless
  • ECCN: EAR99
  • MSL Level: 1
  • Current Rating: 10A
  • HTSUS Code: 8536.90.4000
  • Product Status: Active
  • REACH: Unaffected
