Same model may have multiple batches, images only for reference.

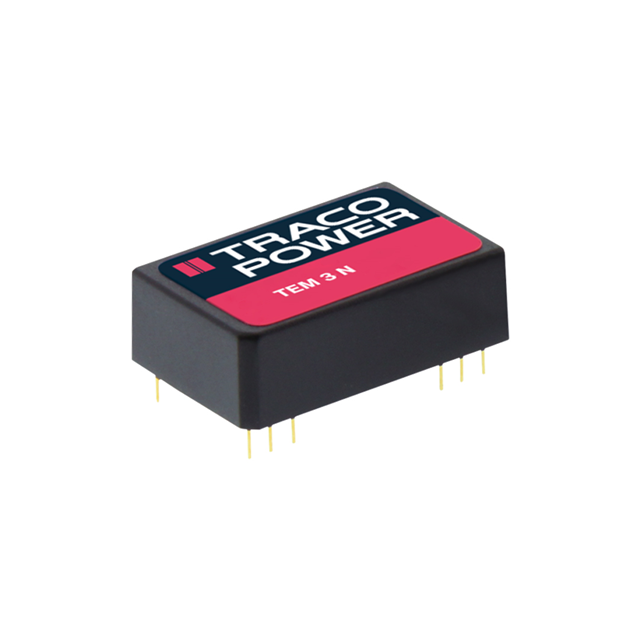

TEM 3-1222N Real Image
Same model may have multiple batches, images only for reference.

TEM 3-1222N

Part No TEM 3-1222N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 10.8V - 13.2V Input
Datasheet
TEM 3-1222N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Through Hole
Case / Package 24-DIP Module, 12 Leads
Size / Dimension 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Base Product Number TEM 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1535
Standard Package 10
Win Source Part Number 1335621-TEM 3-1222N
Ultra Librarian 3D Model Ultra Librarian TEM 3-1222N CAD Model

Description

The Traco Power 1335621-TEM 3-1222N is an isolated module DC-DC converter that is designed for commercial ITE applications.

  • Packaging: tube format
  • Size/Dimension: 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
  • Features: SCP
  • Mounting: through-hole technology
  • Power Rating: 3W
  • Efficiency: 81%
  • Voltage Isolation: 1.5kV
  • Outputs: two
  • Maximum Output Current: 125mA each
  • Input Voltage Range: between 10.8V to 13.2V
  • Output Voltage: +12V and -12V
  • Fourth Output Voltage: No
  • Operating Temperature Range: -40°C to 85°C (with derating)
  • Case: 24-DIP module with 12 leads
  • Product Category: power supply-board mount>DC DC converter
  • ECCN: EAR99 compliant
  • REACH: unaffected
  • HTSUS: 8504.40.9580
  • ROHS3: compliant
