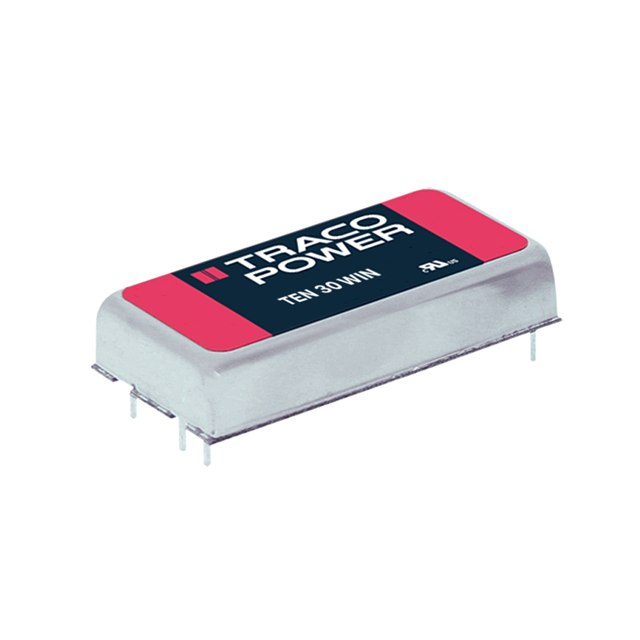

TEN 30-4823WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 30-4823WIN

Part No TEN 30-4823WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 18V - 75V Input
Datasheet
TEN 30-4823WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1A, 1A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2151
Standard Package 10
Win Source Part Number 1335729-TEN 30-4823WIN
Ultra Librarian 3D Model Ultra Librarian TEN 30-4823WIN CAD Model

Description

The Traco Power TEN 30-4823WIN is an isolated module DC-DC converter that is designed for ITE (Commercial) applications.

  • Power Output: 30 watts
  • Efficiency Rate: 88%
  • Features: Remote on/off, OCP, OTP, OVP, SCP, and UVLO features
  • Size Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • Voltage Isolation: 1.5 kV
  • Outputs: 2
  • Maximum Output Current: 1A, 1A
  • Voltage Input Range: 18V to 75V
  • Operating Temperature Range: -40°C to 75°C (with derating)
  • Supplier Device Package: Module
  • Case/Package: 7-DIP module, 6 leads
