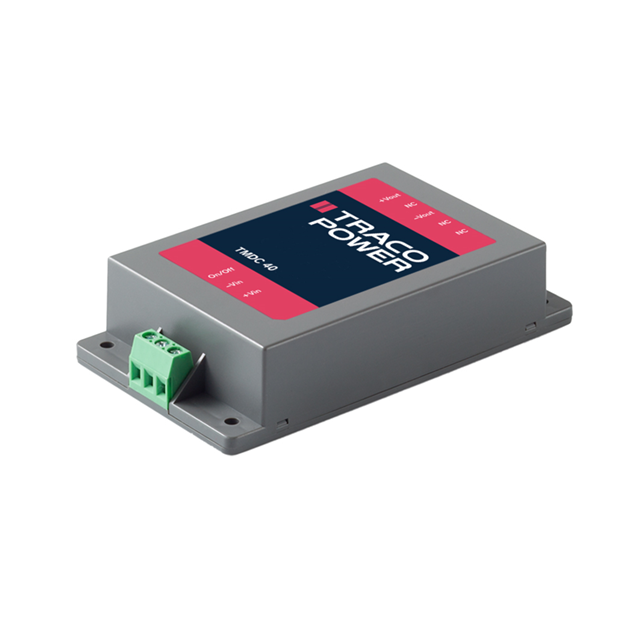

TMDC 40-2411 Real Image
Same model may have multiple batches, images only for reference.

TMDC 40-2411

Part No TMDC 40-2411
Manufacturer Traco Power
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 5.1V 41W / Enclosed DC DC Converter 1 Output 5.1V 8A 36V Input
Datasheet
TMDC 40-2411 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Number of Outputs 1
Voltage - Output 1 5.1V
Current - Output (Max) 8A
Power (Watts) 41W
Voltage - Isolation 2.5 kV
Applications ITE (Commercial)
Efficiency 90%
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Mounting Chassis Mount
Size / Dimension 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.7mm)
Approval Agency CB, CE, cURus
Base Product Number TMDC 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMDC 40-2411-ND,TMDC40-2411-ND,TMDC40-2411,1951-3145,2266-TMDC 40-2411
Standard Package 10
Win Source Part Number 1336098-TMDC 40-2411
Ultra Librarian 3D Model Ultra Librarian TMDC 40-2411 CAD Model

Description

The TMDC 40-2411 is an enclosed DC-DC converter with a power rating of 41 W and a voltage isolation rating of 2.5 kV.

  • Package Type: Box
  • Mounting Type: Chassis
  • Current Rating: 8 A
  • Efficiency: 90%
  • Input Voltage Range: 9 V to 36 V
  • Output Voltage: 5.1 V
  • Operating Temperature Range: -40°C to 85°C
  • Application: ITE applications
