Same model may have multiple batches, images only for reference.

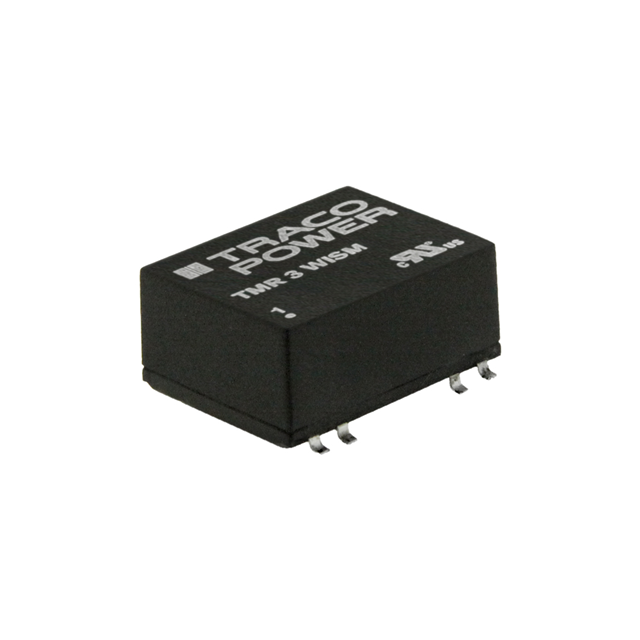

TMR 3-2422WISM Real Image
Same model may have multiple batches, images only for reference.

TMR 3-2422WISM

Part No TMR 3-2422WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input
Datasheet
TMR 3-2422WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 80°C
Efficiency 84%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR3-2422WISM,TMR 3-2422WISM-ND
Standard Package 10
Win Source Part Number 1336232-TMR 3-2422WISM
Ultra Librarian 3D Model Ultra Librarian TMR 3-2422WISM CAD Model

Description

The Traco Power DC-DC converter is an isolated module that is ideal for use in power supplies in commercial applications.

  • Features: Remote On/Off and SCP (Short Circuit Protection)
  • Power Rating: 3 watts
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Current: 125mA each
  • Input Voltage Range: 9V to 36V
  • Output Voltage: 12V and -12V respectively
  • Size: 0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm)
  • Mounting: Surface mount
  • Efficiency: 84%
  • Operating Temperature Range: -40°C ~ 80°C
  • ROHS3 Compliant: Yes
  • Package: 14-SMD Module, 7 Leads
