Same model may have multiple batches, images only for reference.

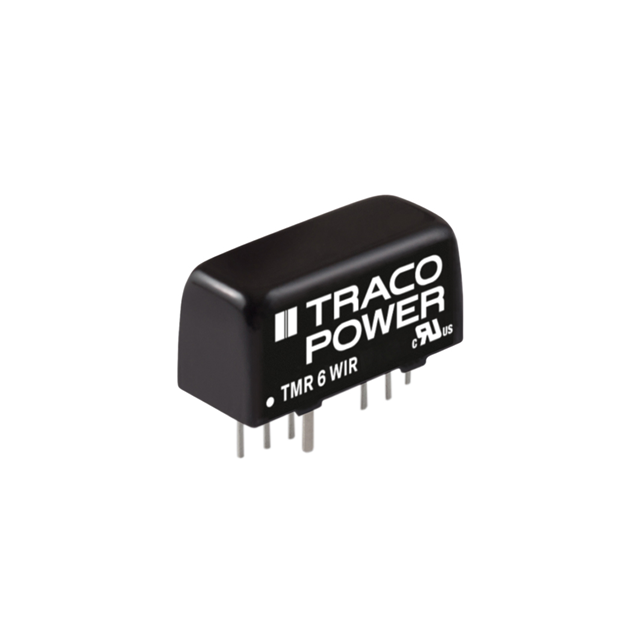

TMR 6-7222WIR Real Image
Same model may have multiple batches, images only for reference.

TMR 6-7222WIR

Part No TMR 6-7222WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 43V - 160V Input
Datasheet
TMR 6-7222WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 8-SIP Module
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2038
Standard Package 10
Win Source Part Number 1336297-TMR 6-7222WIR
Ultra Librarian 3D Model Ultra Librarian TMR 6-7222WIR CAD Model

Description

The Traco Power TMR 6-7222WIR is an isolated module DC-DC converter, designed for use in ITE (Commercial) and Railway applications.

  • Features: Remote On/Off, OCP, and SCP
  • Size: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
  • Mounting: Through a hole
  • Power Output: 6 W
  • Outputs: Two outputs of 250mA each
  • Input Voltage: 43V to 160V
  • Output Voltage: 12V and -12V
  • Efficiency: 86%
  • Voltage Isolation: 3 kV
  • Operating Temperature: -40°C ~ 80°C (With Derating)
  • Package: 8-SIP module package
  • ROHS3 Compliant: Yes
  • REACH Status: Not affected
