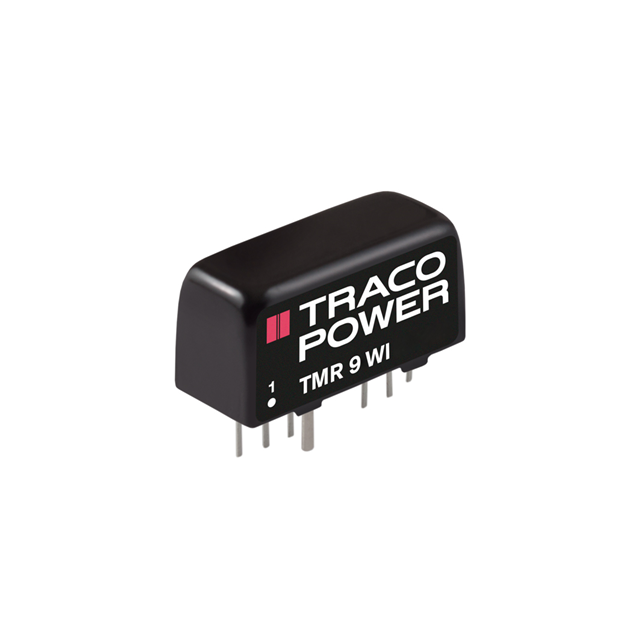

Same model may have multiple batches, images only for reference.

TMR 9-4822WI

Name: TMR 9-4822WI
Brand: Traco Power
SKU: 1336321
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMR 9-4822WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 9W / Isolated Module DC DC Converter 2 Output 12V -12V 375mA, 375mA 18V - 75V Input
Datasheet	TMR 9-4822WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	375mA, 375mA
Power (Watts)	9 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	8-SIP Module, 6 Leads
Size / Dimension	0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Approval Agency	CB, cURus
Base Product Number	TMR 9
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-TMR 9-4822WI,TMR9-4822WI,TMR 9-4822WI-ND
Standard Package	10
Win Source Part Number	1336321-TMR 9-4822WI
Ultra Librarian 3D Model	Ultra Librarian TMR 9-4822WI CAD Model

Alternative Products

Description

The Traco Power TMR 9-4822WI is an isolated module DC DC converter designed for various electronic applications.

Module Type: Isolated
Manufacturer: Traco Power
Win Source Part Number: 1336321-TMR 9-4822WI
Power: 9W
Outputs: 2
Current Output: 375mA
Voltage Isolation: 1.6kV
Temperature Range: -40°C to 85°C with derating
ROHS: ROHS3 compliant
