SP-13 Triad Magnetics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

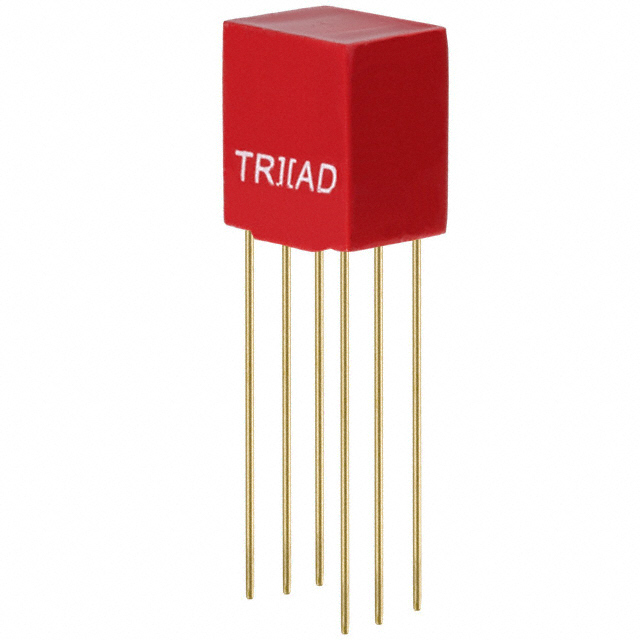

SP-13

Part No SP-13
Manufacturer Triad Magnetics
Catalog Audio Transformers
Description XFMR 25KCT 20KCT / 1KCT 800CT TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Turns Ratio - Primary 5:1
Impedance - Primary (Ohms) 25kCT, 20kCT
Impedance - Secondary (Ohms) 1kCT, 800CT
DC Resistance (DCR) - Primary 1.7kOhm
DC Resistance (DCR) - Secondary 115Ohm
Transformer Type Audio Coupling
Frequency Range 300Hz ~ 100kHz
Frequency Response ±2dB
Voltage - Isolation 1000VRMS @ 1 Second
Power Level 40mW
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Size / Dimension 0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max) 0.465" (11.80mm)
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1511136-SP-13
Ultra Librarian 3D Model Ultra Librarian SP-13 CAD Model
