Same model may have multiple batches, images only for reference.

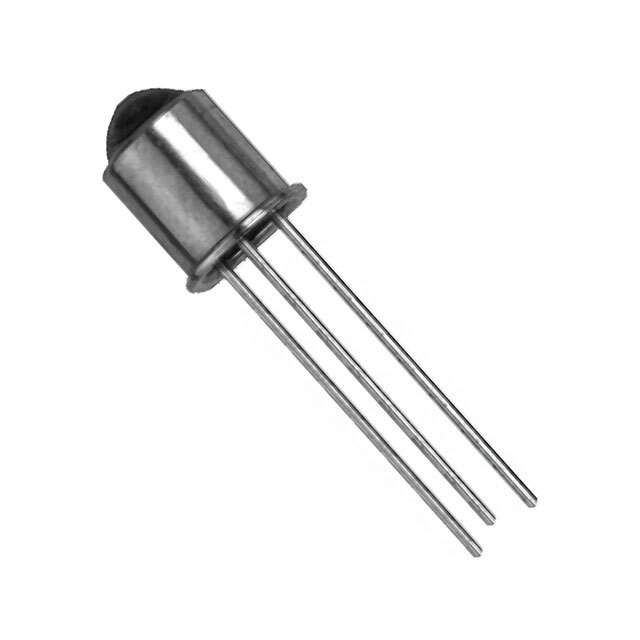

OP804SL Real Image
Same model may have multiple batches, images only for reference.

OP804SL

Part No OP804SL
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 890NM TOP TO206AA  /  Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
Datasheet
OP804SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr TT Electronics/Optek Technology
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 890nm
Power - Max 250 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
Base Product Number OP804
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 365-1081
Standard Package 1,000
Win Source Part Number 1202557-OP804SL
Ultra Librarian 3D Model Ultra Librarian OP804SL CAD Model

Description

The OP804SL is an optical sensor phototransistor from TT Electronics/Optek Technology, designed for use in sensors and transducers.

  • Component Type: Phototransistor
  • Application: Sensors and transducers
  • Mounting: Through-hole
  • View Orientation: Top view
  • Package: TO-206AA, TO-18-3 metal can
  • Maximum Power: 250 mW
  • Maximum Collector-Emitter Breakdown Voltage: 30 V
  • Maximum Collector Current: 50 mA
  • Maximum Dark Current: 100 nA
  • Wavelength: 890nm
  • Operating Temperature: -65°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
