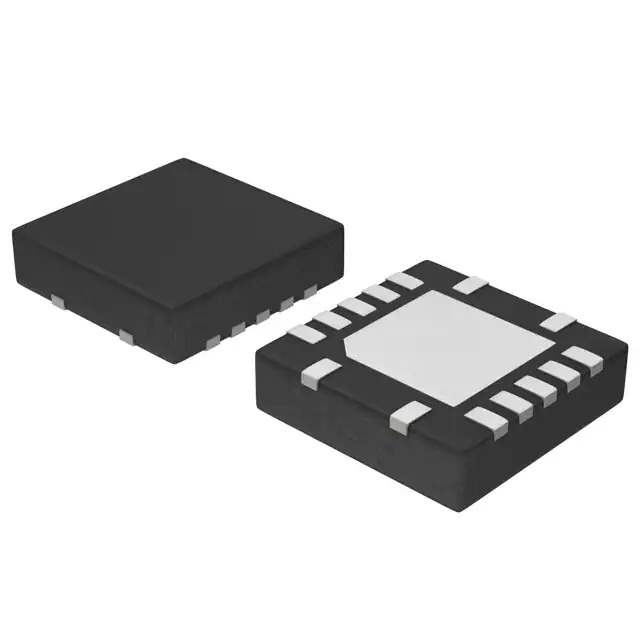

UM3204Q Real Image
Same model may have multiple batches, images only for reference.

UM3204Q

Part No UM3204Q
Manufacturer Union Semiconductor
Catalog Logic - Translators, Level Shifters
Description IC TRANSLTR BIDIRECTIONAL 14QFN
Datasheet
UM3204Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Translators, Level Shifters
Mfr Union Semiconductor
Package Tape & Reel
Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 4
Voltage - VCCA 1.65 V ~ 3.6 V
Voltage - VCCB 2.3 V ~ 5.5 V
Output Type Open Drain, Push-Pull
Data Rate 24Mbps
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 14-VFQFN Exposed Pad
Supplier Device Package 14-QFN (3.5x3.5)
Base Product Number UM3204
Standard Package 2 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.39.0001
Win Source Part Number 841343-UM3204Q
Ultra Librarian 3D Model Ultra Librarian UM3204Q CAD Model

Description

The 841343-UM3204Q is a voltage level translator and level shifter integrated circuit.

  • Category: Integrated Circuits (ICs) - Logic - Translators, Level Shifters
  • Circuits: 1
  • Channels: 4 bidirectional
  • Data Rate: 24Mbps
  • VCCA Voltage Range: 1.65V to 3.6V
  • VCCB Voltage Range: 2.3V to 5.5V
  • Output Types: Open drain and push-pull
  • Mounting Type: Surface mountable
  • Package: 14-VFQFN Exposed Pad
  • Operating Temperature Range: -40°C to 85°C
  • Status: Active
  • Manufacturer: Union Semiconductor
