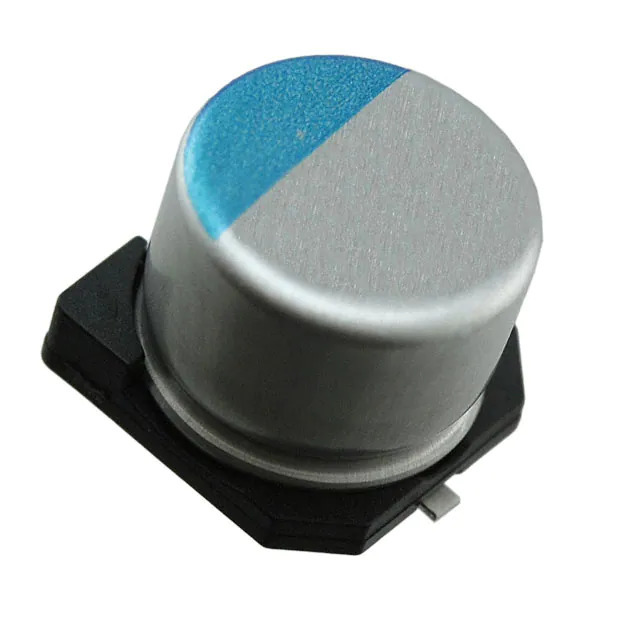

APXG200ARA391MHA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXG200ARA391MHA0G

Part No APXG200ARA391MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 390UF 20% 20V SMD / 390 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXG
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 3.7 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.406" (10.30mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359527-APXG200ARA391MHA0G
Ultra Librarian 3D Model Ultra Librarian APXG200ARA391MHA0G CAD Model

Description

The APXG200ARA391MHA0G is a polymer aluminum capacitor from United Chemi-Con's NPCAP™-PXG series.

  • Capacitance: 390 µF
  • Voltage Rating: 20 V
  • Mounting Type: Surface Mount
  • Application: General-purpose
  • Package: Tape and Reel
  • Diameter: 0.315 inches
  • Height: 0.406 inches
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 15000 hours @ 105°C
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 20mOhm
  • Ripple Current: 3.7 A @ high frequency (100 kHz)
  • Polarization: Polarized
  • Surface Mount Land Size: 0.327 inches by 0.327 inches (8.30mm x 8.30mm)
  • REACH Compliance: Complies with REACH regulations
  • ECCN: EAR99
