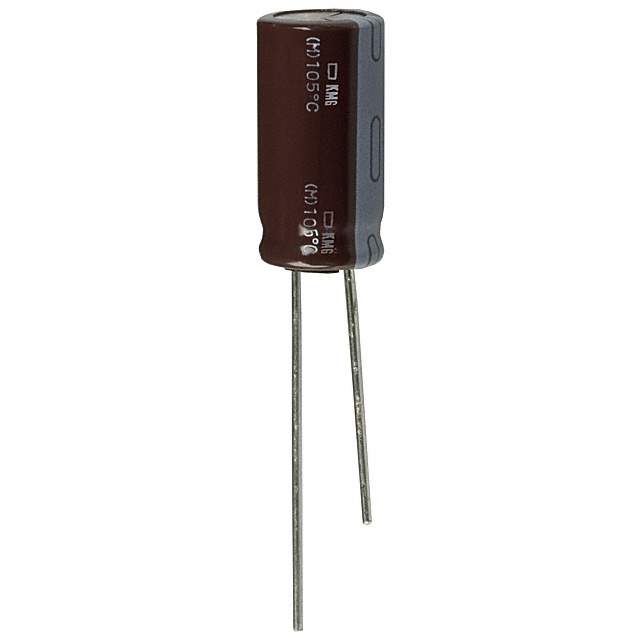

EKMG630ELL331MJ20S Real Image
Same model may have multiple batches, images only for reference.

EKMG630ELL331MJ20S

Part No EKMG630ELL331MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 63V RADIAL
Datasheet
EKMG630ELL331MJ20S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Status Active
Capacitance 330μF
Tolerance ±20%
Voltage Rating 63V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 510mA @ 120Hz
Ripple Current - High Frequency 765mA @ 100kHz
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1050500-EKMG630ELL331MJ20S
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian EKMG630ELL331MJ20S CAD Model

Description

The United Chemi-Con 1050500-EKMG630ELL331MJ20S capacitor is designed for general-purpose applications.

  • Application: General Purpose
  • Capacitance: 330μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • ESR: 22mOhm
  • Mounting Type: Through-Hole
  • Height: 0.846 inches
  • Diameter: 0.630 inches
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 1000 hours @ 105°C
  • Packaging: Bulk
