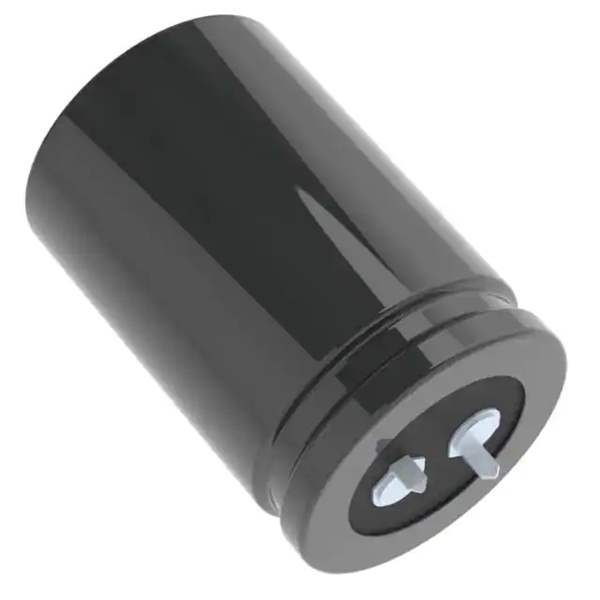

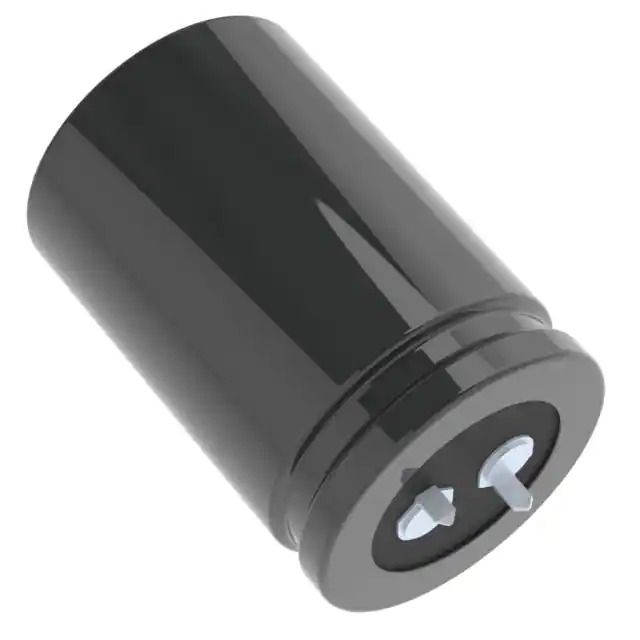

ELXS421VSN681MA50S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXS421VSN681MA50S

Part No ELXS421VSN681MA50S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 420V SNAP / 680 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXS
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 420 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.45 A @ 120 Hz
Ripple Current @ High Frequency 3.5035 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.067" (52.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360679-ELXS421VSN681MA50S
Ultra Librarian 3D Model Ultra Librarian ELXS421VSN681MA50S CAD Model

Description

The 1360679-ELXS421VSN681MA50S is a high-quality aluminum electrolytic capacitor from United Chemi-Con's LXS series.

  • Application: General Purpose
  • Operating Temperature: -25°C to 105°C
  • Capacitance: 680 µF
  • Voltage Rating: 420 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 2.45 A @ 120 Hz
  • Ripple Current (High Frequency): 3.5035 A @ 50 kHz
  • Package: Radial, Can-Snap-In
  • Mounting Type: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 1.378" Dia (35.00mm)
  • Lifetime: 5000 hours @ 105°C
  • Status: Active
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Polarized: Yes
