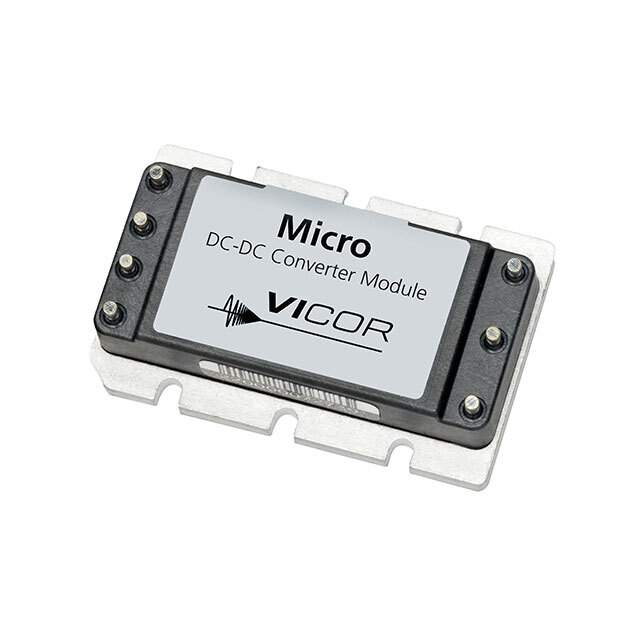

V24C12M100B Real Image1 V24C12M100B Real Image2
Same model may have multiple batches, images only for reference.
V24C12M100B Real Image1 V24C12M100B Real Image2
V24C12M100B Real Image1 V24C12M100B Real Image2
Same model may have multiple batches, images only for reference.

V24C12M100B

Part No V24C12M100B
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 100W / Isolated Module DC DC Converter 1 Output 12V 8.33A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Vicor Corporation
Series MICRO (100W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 8.33A
Power (Watts) 100 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features OVP, UVLO
Temperature Range - Operating -55°C ~ 100°C
Efficiency 85.8%
Mounting Type Through Hole
Package / Case Quarter Brick
Size / Dimension 2.28" L x 1.45" W x 0.54" H (57.9mm x 36.8mm x 13.7mm)
Base Product Number V24C12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1383819-V24C12M100B
Ultra Librarian 3D Model Ultra Librarian V24C12M100B CAD Model

Description

The 1383819-V24C12M100B is a high-quality isolated module DC-DC converter from the MICRO (100W) series. It is designed for use in ITE (Commercial) applications and offers a power output of 100W.

  • Application: ITE (Commercial)
  • Power Output: 100W
  • Voltage Isolation: 3 kV
  • Output: Single
  • Output Voltage: 12V
  • Protection Features: Overvoltage Protection (OVP), Undervoltage Lockout (UVLO)
  • Input Voltage: 18V to 36V
  • Output Current: 8.33A (Max)
  • Size / Dimension: 2.28" L x 1.45" W x 0.54" H
  • Operating Temperature: -55°C to 100°C
  • Efficiency: 85.8%
  • Manufacturer: Vicor Corporation
  • Moisture Sensitivity Level: 1 (Unlimited)
