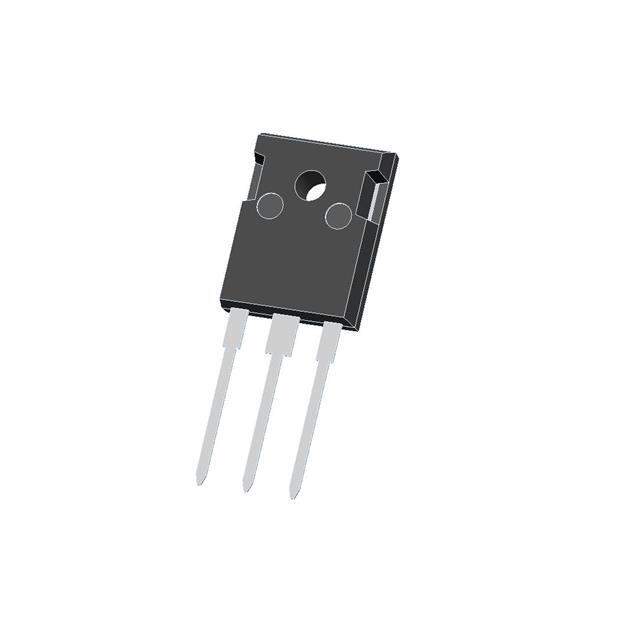

40CPQ040 Real Image
Same model may have multiple batches, images only for reference.

40CPQ040

Part No 40CPQ040
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 40V TO247AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) at If 490mV at 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 4mA at 40V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247AC
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1128567-40CPQ040
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 40CPQ040 CAD Model

Description

The Vishay Semiconductor Diodes Division's 40CPQ040 is a fast recovery Schottky diode pair with a current rating of 20A per diode.

  • Temperature Range: -55°C to 150°C
  • Maximum Reverse Voltage Rating: 40V
  • Diode Configuration: Common cathode
  • Package: TO-247AC package
  • Product Status: Obsolete
  • Supply Status: Limited
  • Forward Voltage Rating: 490mV @ 20A
  • Reverse Leakage Current: 4mA @ 40V
