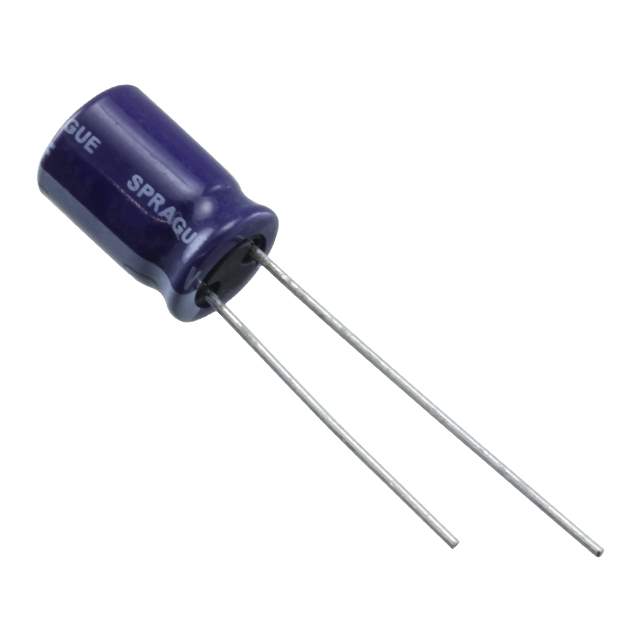

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay Sprague
Series 515D
Package Bulk
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 185 mA @ 120 Hz
Ripple Current @ High Frequency 277.5 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338655-515D107M025AA6AE3
Ultra Librarian 3D Model Ultra Librarian 515D107M025AA6AE3 CAD Model

Description

The Vishay Sprague 1338655-515D107M025AA6AE3 is an aluminum electrolytic capacitor designed for use in a variety of applications.

  • Series: 515D
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Type: Radial, Can
  • Rated Voltage: 25 V
  • Ripple Current @ Frequency: 185 mA @ 120 Hz, 277.5 mA @ 10 kHz
  • Lead Spacing: 0.098" (2.50mm)
  • Diameter: 0.248" (6.30mm)
  • Height: 0.433" (11.00mm)
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Lifetime @ Temperature: 2000 Hours @ 85°C
  • ECCN: EAR99
  • REACH: Unaffected
