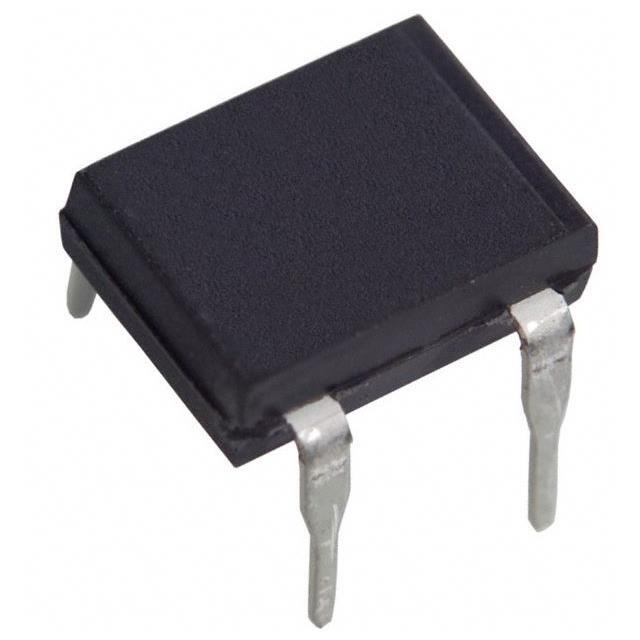

Same model may have multiple batches, images only for reference.
B80C800DM-E3/45 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B80C800DM-E3/45

Part No B80C800DM-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 125V 900MA DFM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 125 V
Current - Average Rectified (Io) 900 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 900 mA
Current - Reverse Leakage @ Vr 10 µA @ 125 V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Through Hole
Case / Package 4-EDIP (0.300", 7.62mm)
Supplier Device Package DFM
Package Tube
Supply and Demand Status Normal
Win Source Part Number 1490926-B80C800DM-E3/45
Ultra Librarian 3D Model Ultra Librarian B80C800DM-E3/45 CAD Model

Description
