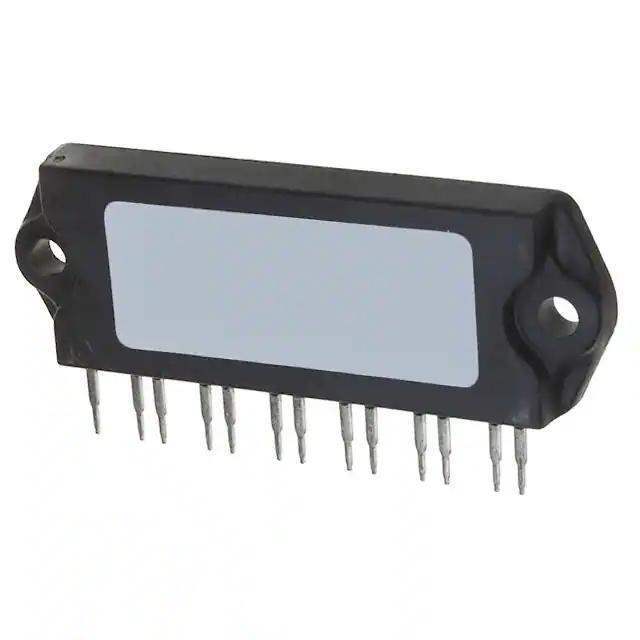

Same model may have multiple batches, images only for reference.
CPV364M4U Vishay
Same model may have multiple batches, images only for reference.

CPV364M4U

Part No CPV364M4U
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT MODULE 600V 20A 63W IMS-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1168939-CPV364M4U
Manufacturer Vishay
Category Discrete Semiconductor Products- Transistors- IGBTs IGBT Modules
Package Bulk
Product Status Active
Configuration Three Phase Inverter
Current - Collector (Ic) (Max) 20 A
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 19-SIP (13 Leads), IMS-2
Supplier Device Package IMS-2
Ultra Librarian 3D Model Ultra Librarian CPV364M4U CAD Model

Description

The Vishay IGBT module is a three-phase inverter configuration suitable for various power electronic applications.

  • Maximum Collector Current (Ic): 20A
  • Operating Temperature: -40°C to 150°C
  • Mounting Type: Through Hole
  • Package/Case: 19-SIP (13 Leads), IMS-2
  • Part Status: Active
