Same model may have multiple batches, images only for reference.

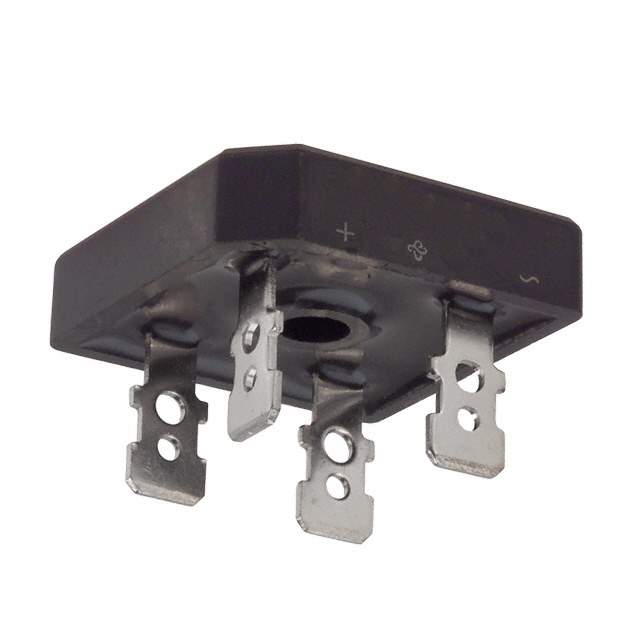

GBPC2501-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC2501-E4/51

Part No GBPC2501-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 25A 100V GBPC / Diode Rectifier Bridge Single 100V 25A 4-Pin Case GBPC Bulk
Datasheet
GBPC2501-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 12.5A
Current - Reverse Leakage @ Vr 5μA @ 100V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, GBPC
Manufacturer Package GBPC
Win Source Part Number 791399-GBPC2501-E4/51
Popularity Medium
Supply and Demand Status Limited
Family Name GBPC2501
Introduction Date January 05, 1990
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian GBPC2501-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division GBPC2501 is a single-phase standard diode manufactured by Vishay Semiconductor Diodes Division.

  • Current Rating: 25A
  • Maximum Peak Reverse Voltage: 100V
  • Forward Voltage Drop: 1.1V @ 12.5A
  • Reverse Leakage Current: 5μA @ 100V
  • Package: 4-Square GBPC with QC terminals
  • Operating Temperature Range: -55°C to 150°C
  • Application: Discrete Semiconductor Products
