The Vishay IRF634PBF is an N-Channel MOSFET with a drain-source breakdown voltage of 250V.

• Continuous Drain Current: 8.1A (Tc) @ 25°C
• Power Dissipation (max): 74W (Tc)
• Gate-Source Threshold Voltage: 4V @ 250μA
• Mounting: Through-hole
• Technology: MOSFET
• Polarity: N-Channel
• Drive Voltage (max Rds On, Min Rds On): 10V
• Maximum Rds On at Id,Vgs: 450 mOhm @ 5.1A, 10V
• Maximum Gate-Source Voltage: ±20V
• Maximum Gate Charge: 41nC @ 10V
• Maximum Input Capacitance: 770pF @ 25V
• Temperature Range: -55°C to 150°C (TJ)

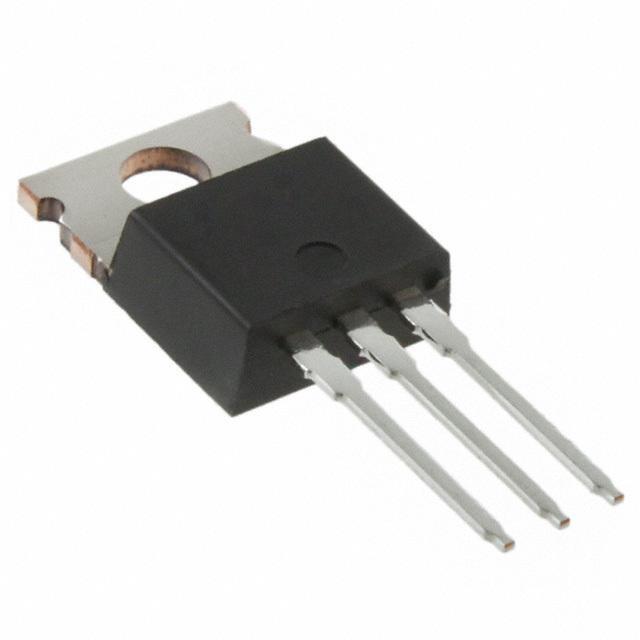

• Package: TO-220AB case
• Dimension: TO-220-3
• Supply and Demand Status: balanced
