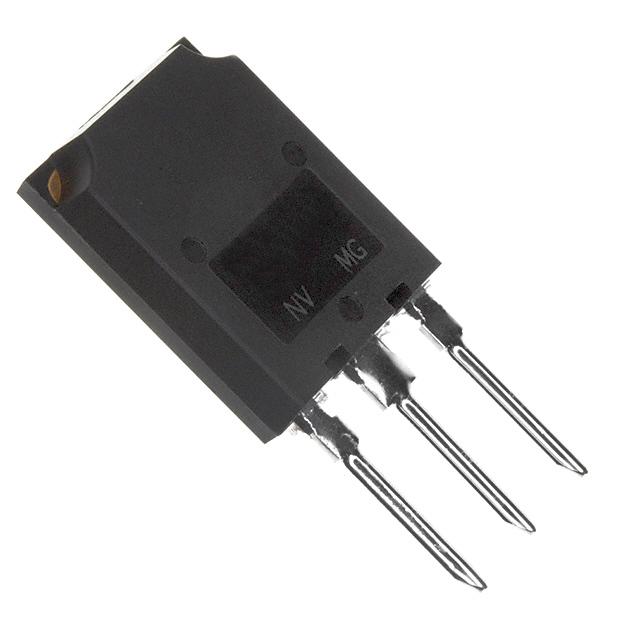

Same model may have multiple batches, images only for reference.
IRFPS35N50LPBF Vishay
Same model may have multiple batches, images only for reference.

IRFPS35N50LPBF

Part No IRFPS35N50LPBF
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 34A SUPER247
Datasheet
IRFPS35N50LPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 34A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 230nC @ 10V
Max Input Capacitance 5580pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 450W (Tc)
Maximum Rds On at Id,Vgs 145 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package SUPER-247 (TO-274AA)
Dimension TO-274AA
Win Source Part Number 205383-IRFPS35N50LPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFPS35N50LPBF CAD Model

Description

The Vishay IRFPS35N50LPBF is a N-Channel MOSFET with a drain-source breakdown voltage of 500V and a continuous drain current of 34A at 25°C.

  • Drain-Source Breakdown Voltage: 500V
  • Continuous Drain Current: 34A @ 25°C
  • Maximum Rds On: 145 mOhm @ 20A and 10V
  • Maximum Gate-Source Voltage: ±30V
  • Gate-Source Threshold Voltage: 5V @ 250μA
  • Maximum Gate Charge: 230nC @ 10V
  • Maximum Input Capacitance: 5580pF @ 25V
  • Package: SUPER-247 (TO-274AA)
  • Dimensions: TO-274AA
