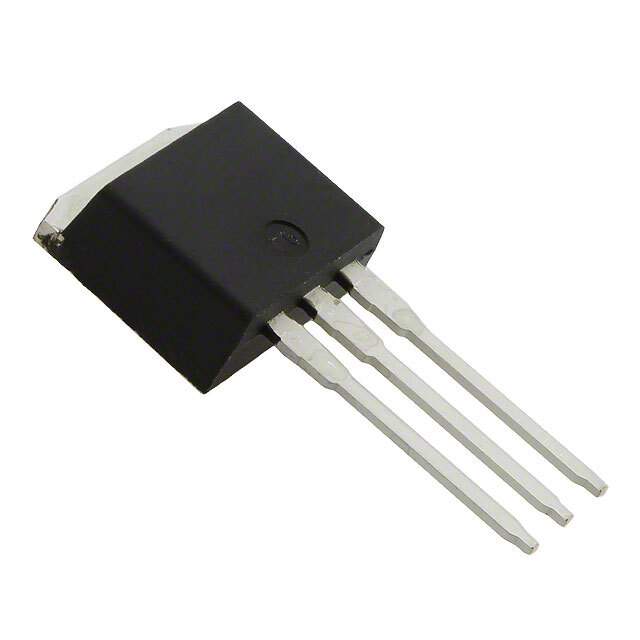

The 1047695-IRLZ14L is an N-channel MOSFET device from Vishay.

• Supply and Demand Status: Balanced
• Status: Obsolete (EOL)
• Maximum Gate-Source Voltage: ±10V
• Maximum Rds on @ Id, Vgs: 200 mOhm @ 6A, 5V
• Package: TO-262-3
• Dimension: TO-262-3 Long Leads, I2Pak, TO-262AA
• Drain-Source Breakdown Voltage: 60V
• Continuous Drain Current @ 25°C: 10A (Tc)
• Gate-Source Threshold Voltage: 2V @ 250μA
• Max Gate Charge: 8.4nC @ 5V
• Max Input Capacitance: 400pF @ 25V
• Operating Temperature: -55°C to 175°C (TJ)
• Packaging: Tube/Rail
• Quantity per Package: 50
