Same model may have multiple batches, images only for reference.

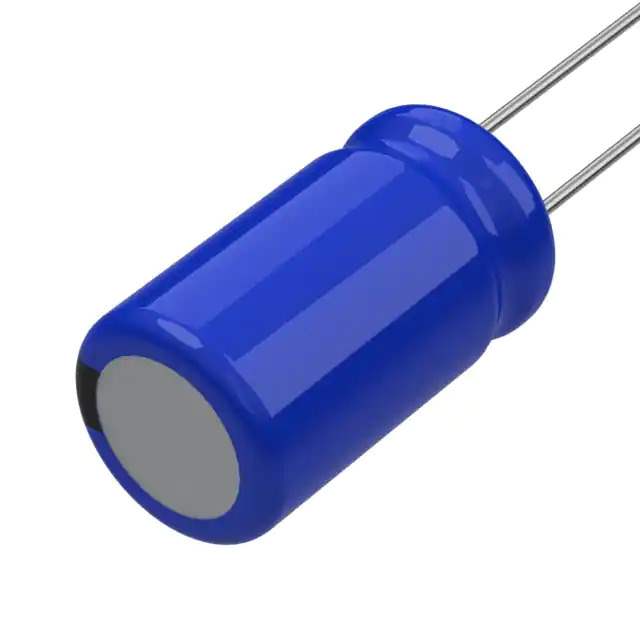

MAL215252229E3 Real Image
Same model may have multiple batches, images only for reference.

MAL215252229E3

Part No MAL215252229E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 200V RADIAL / 22 μF 200 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
MAL215252229E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Vishay
Series 152 RMH
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 120 mA @ 100 Hz
Impedance 3.2 Ohms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 925142-MAL215252229E3
Ultra Librarian 3D Model Ultra Librarian MAL215252229E3 CAD Model

Description

The 925142-MAL215252229E3 is an aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 22 μF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • Impedance: 3.2 Ohms
  • Lifetime: 3000 hours @ 105°C
  • Mounting: Through-hole
  • Package: Radial can
  • Size: 0.394" Dia (10.00mm)
  • Height: 0.689" (17.50mm)
  • Series: 152 RMH
  • AEC-Q200 Rated: Yes
