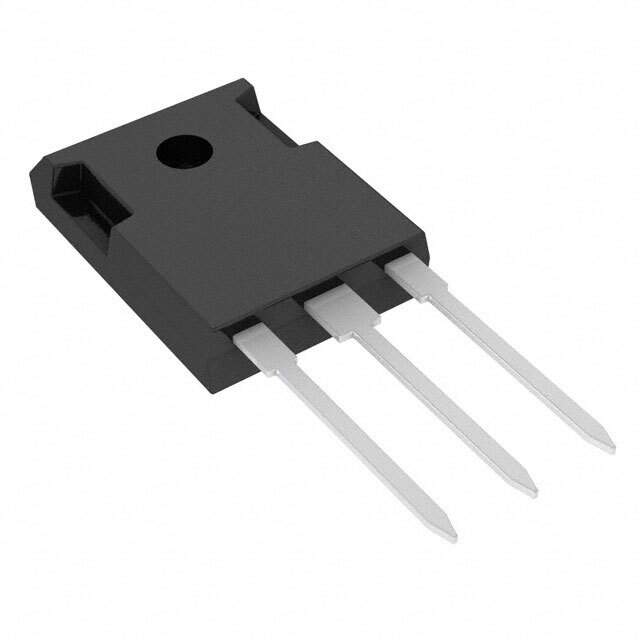

MBR30H90PT-E3/45 Real Image
Same model may have multiple batches, images only for reference.

MBR30H90PT-E3/45

Part No MBR30H90PT-E3/45
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 90V TO3P  /  Diode Array 1 Pair Common Cathode Schottky 90 V 15A Through Hole TO-3P-3, SC-65-3
Datasheet
MBR30H90PT-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 90 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 820 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 90 V
Operating Temperature - Junction -65°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-3P-3, SC-65-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number MBR30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 750
Win Source Part Number 1000303-MBR30H90PT-E3/45
Ultra Librarian 3D Model Ultra Librarian MBR30H90PT-E3/45 CAD Model

Description

The Vishay General Semiconductor - Diodes Division MBR30H90PT-E3/45 is a fast recovery Schottky diode type electronic component.

  • Voltage - DC Reverse (Vr) (Max): 90 V
  • Voltage - Forward (Vf) (Max) @ If: 820 mV @ 15 A
  • Current - Reverse Leakage @ Vr: 5 µA @ 90 V
  • Current - Average Rectified (Io) (per diode): 15A
  • Category: Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
  • Mounting Type: through-hole
  • Package/Case: TO-3P-3, SC-65-3
