Same model may have multiple batches, images only for reference.

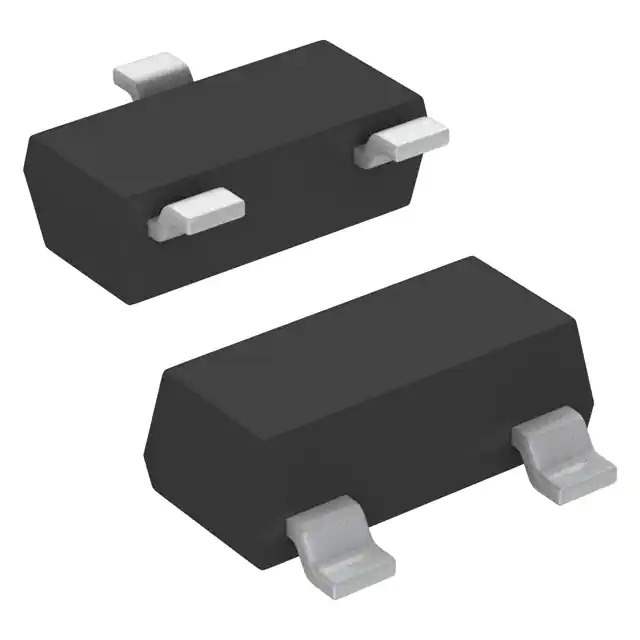

MPM1002AT1 Real Image
Same model may have multiple batches, images only for reference.

MPM1002AT1

Part No MPM1002AT1
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES NETWORK 2 RES 5K, 5K OHM
Datasheet
MPM1002AT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Vishay
Series MPM
Package Tape & Reel
Product Status Active
Circuit Type Voltage Divider
Resistance (Ohms) 5k, 5k
Tolerance ±0.1%
Number of Resistors 2
Resistor Matching Ratio ±0.05%
Resistor-Ratio-Drift ±2ppm/°C
Number of Pins 3
Power Per Element 100mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Voltage Divider (TCR Matched)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Size / Dimension 0.113" L x 0.051" W (2.86mm x 1.30mm)
Height - Seated (Max) 0.044" (1.12mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 643850-MPM1002AT1
Ultra Librarian 3D Model Ultra Librarian MPM1002AT1 CAD Model

Description

The MPM1002AT1 is a resistor network array from Vishay's MPM series.

  • Category: Resistors, Resistor Networks
  • Number of Resistors: Two
  • Resistance: 5k each
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Package: SOT-23
  • Mounting Type: Surface Mount
  • Power per Element: 100mW
  • Operating Temperature Range: -55°C to 125°C
