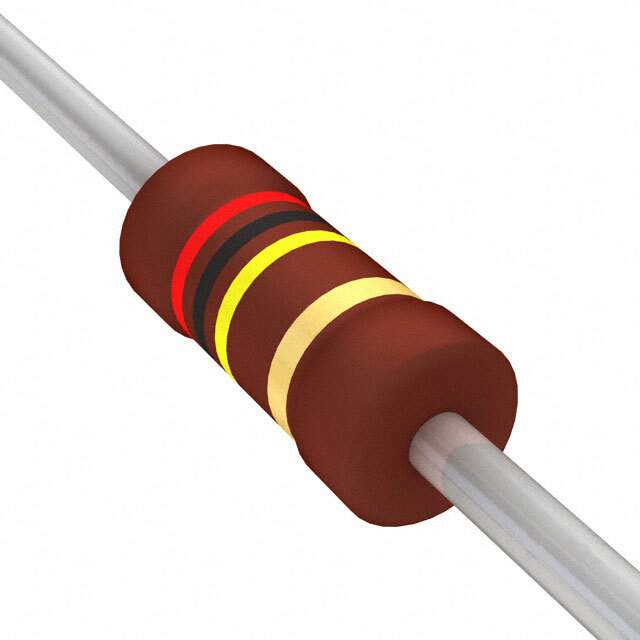

Same model may have multiple batches, images only for reference.

PR03000202003JAC00

Name: PR03000202003JAC00
Brand: Vishay
SKU: 1036231
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PR03000202003JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 200K OHM 3W 5% AXIAL / 200 kOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Film
Datasheet	PR03000202003JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR03
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	200 kOhms
Tolerance	±5%
Power (Watts)	3W
Composition	Metal Film
Features	Flame Retardant Coating, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	2322 195 14204,PPC200KW-3JTB,PPC200KW-3JCT,BC200KW-3JTB-ND,BC200KW-3JTBINACTIVE,BC200KW-3JCT,BC200KW-3JCT-ND,PPC200KW-3JCT-NDR,5093NW200K0JBC,Q8072255A,232219514204,PPC200KW-3JTB-NDR,5093NW200K0J,5093NW200K0JA8AFX,BC200KW-3JTB,BC200KW-3JCTINACTIVE
Standard Package	500
Win Source Part Number	1036231-PR03000202003JAC00
Ultra Librarian 3D Model	Ultra Librarian PR03000202003JAC00 CAD Model

Alternative Products

Description

The PR03000202003JAC00 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components.

Series: PR03
Power Rating: 3W
Resistance: 200 kOhms
Tolerance: ±5%
Temperature Coefficient: ±250ppm/°C
Package: Cut tape (CT), tape & box (TB)
HTSUS Code: 8533.21.0090
Dimension: 0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Suitable for: Use in safety-critical applications
