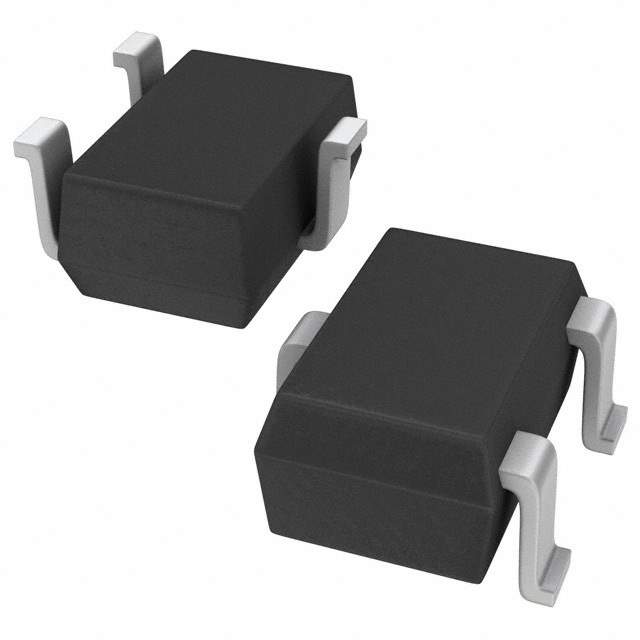

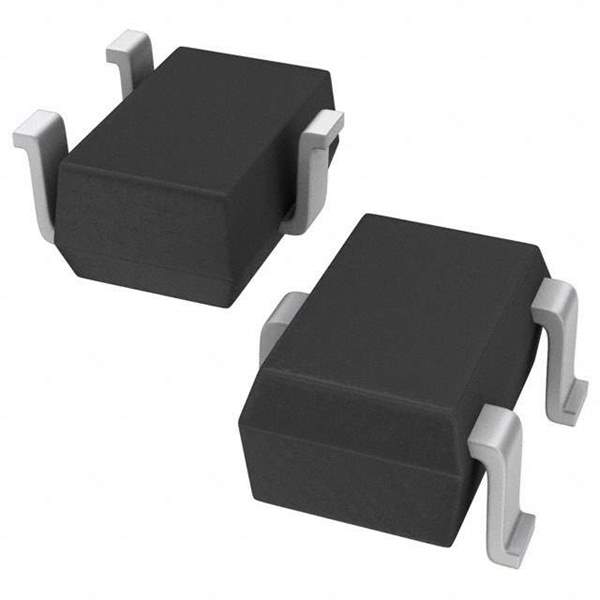

The SI1307DL-T1-GE3 is a P-Channel 20 V MOSFET manufactured by Vishay. This device is designed for use in a variety of applications requiring efficient load switching and power management in a small form factor. The SI1307DL-T1-GE3 is housed in a compact SOT-23 package.

Applications

• Load Switching
• Battery Management
• DC-DC Conversion
• Portable Devices
• Power Management Circuits

Features

• P-Channel MOSFET
• Low On-Resistance: RDS(on) = 0.135 Ω at VGS = -4.5 V
• Low Threshold Voltage: VGS(th) = -1.0 V (Typical)
• Fast Switching Speed
• Small SOT-23 Package
• Halogen-free According to IEC 61249-2-21 Definition

Benefits

• Improved Efficiency: Low on-resistance reduces power losses during switching, leading to higher efficiency.
• Extended Battery Life: Low threshold voltage and gate charge minimize power consumption in battery-powered applications.
• Compact Design: SOT-23 package allows for high-density board layouts in space-constrained environments.
• Simplified Gate Drive: Low threshold voltage simplifies the gate drive requirements, lowering component count and cost.
• Environmentally Friendly: Halogen-free construction complies with environmental standards.

Technical Specifications

• Polarity: P-Channel
• Drain-Source Voltage (VDS): -20 V
• Gate-Source Voltage (VGS): ±8 V
• Continuous Drain Current (ID): -2.7 A
• Pulsed Drain Current (IDM): -6 A
• Power Dissipation (PD): 0.83 W
• Operating Temperature: -55 °C to +150 °C
• Package: SOT-23

The SI1307DL-T1-GE3 from Vishay is a P-Channel MOSFET designed for efficient power management in a small package. Its low on-resistance, fast switching speed, and compact size make it well-suited for a variety of portable and power-sensitive applications.
