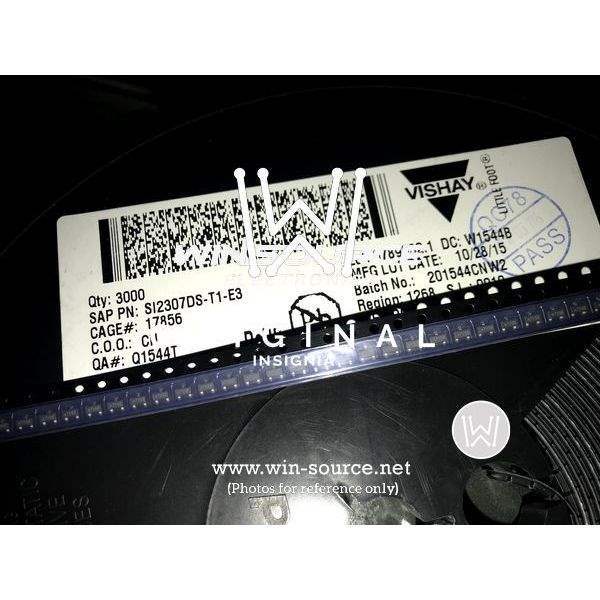

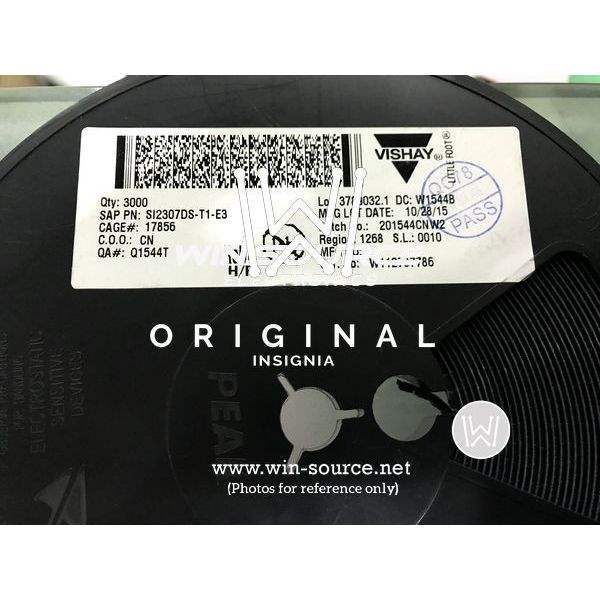

The SI2307DS is a P-Channel MOSFET manufactured by Vishay. It is designed for switching and amplification applications, offering low on-resistance and efficient performance.

Applications

• Load Switching
• Power Management
• Battery Management Systems
• DC-DC Converters
• Audio Amplification

Features

• Low On-Resistance (RDS(on)): Minimizes power loss and heat generation.
• Fast Switching Speed: Enables efficient operation in high-frequency circuits.
• Logic Level Gate Drive: Allows direct control from microcontrollers and other logic devices.
• TrenchFET® Power MOSFET: Vishay's advanced trench technology for improved performance.
• Small Footprint: Typically available in a SOT-23 package.

Benefits

• Increased Efficiency: Lower RDS(on) minimizes power dissipation, leading to higher efficiency.
• Extended Battery Life: Reduced power consumption extends battery life in portable devices.
• Simplified Design: Logic level gate drive simplifies interfacing with control circuitry.
• Reduced Board Space: Small package size saves valuable PCB area.
• Improved Reliability: Robust design ensures reliable operation in demanding environments.

Additional Details

The SI2307DS typically comes in a SOT-23 package. Its drain-source voltage (VDS) is generally rated around -20V, and the continuous drain current (ID) is typically in the range of -3A to -5A, depending on the operating conditions and thermal management. The gate threshold voltage (VGS(th)) is typically between -0.45V and -1V. This P-Channel MOSFET is well-suited for high-side switching applications where a small form factor and efficient switching are required. The trenchFET technology contributes to a lower RDS(on) compared to older MOSFET designs, resulting in less heat generation and improved overall performance. Careful thermal management is essential to ensure reliable operation at higher currents. Always refer to the Vishay datasheet for comprehensive electrical characteristics, thermal performance data, and application guidelines.
