SI4134DY-T1-E3

Part No SI4134DY-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 14A 8-SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 23nC @ 10V
Max Input Capacitance 846pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 5W (Tc)
Maximum Rds On at Id,Vgs 14 mOhm @ 10A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SO
Dimension 8-SOIC (0.154", 3.90mm Width)
Win Source Part Number 064472-SI4134DY-T1-E3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance

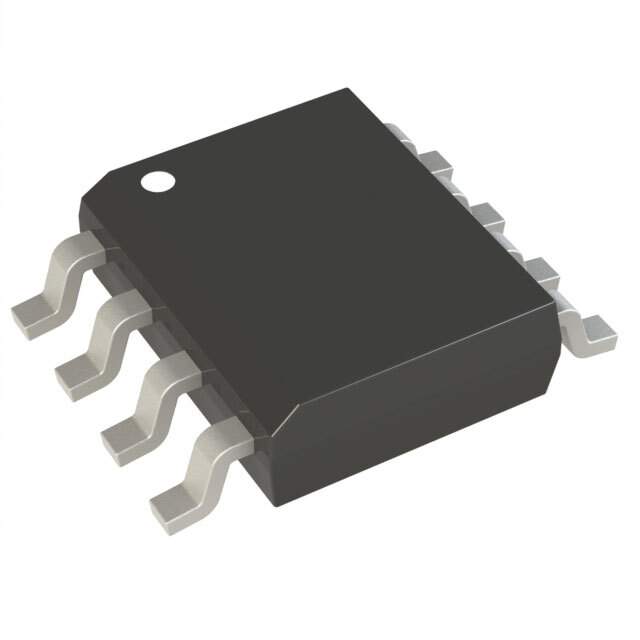

Ultra Librarian 3D Model Ultra Librarian SI4134DY-T1-E3 CAD Model

Description

The SI4134DY-T1-E3 is a P-Channel MOSFET manufactured by Vishay. This MOSFET is designed for various applications requiring efficient power management and load switching. Its low on-resistance and fast switching speeds make it suitable for applications where energy efficiency is paramount.

Applications

  • Load Switching: Used to control power distribution to different circuit blocks efficiently.
  • Power Management in Portable Devices: Optimizes power consumption in smartphones, tablets, and other battery-powered devices to extend battery life.
  • DC-DC Converters: Can be incorporated into DC-DC converters for efficient voltage regulation and power conversion.
  • Battery Management Systems (BMS): Employed in BMS for battery protection and charge/discharge control.
  • Solid State Relays (SSR): Can be used as switching elements in solid-state relays for reliable and fast switching.

Features

  • P-Channel MOSFET: Simplifies high-side switching implementation.
  • Low On-Resistance (RDS(on)): Minimizes power losses and increases overall efficiency.
  • Low Gate Threshold Voltage (VGS(th)): Allows for operation with low-voltage logic levels.
  • Small Footprint: The surface-mount package enables compact designs.
  • High Drain Current (ID): Capable of handling significant current loads in various applications.
  • Fast Switching Speed: Allows for efficient switching in high-frequency circuits.

Benefits

  • Enhanced Power Efficiency: Low on-resistance reduces power dissipation, leading to improved system efficiency.
  • Extended Battery Life: Optimized power management extends battery life in portable devices.
  • Simplified Circuit Design: P-Channel configuration simplifies high-side switching designs.
  • Compact Solution: Small footprint enables miniaturization of electronic circuits.
  • Improved Thermal Performance: Efficient heat dissipation ensures stable operation in various environments.
  • Reliable Operation: Robust design and construction guarantees dependable performance.

Additional Details

The SI4134DY-T1-E3 typically comes in a surface-mount package, which facilitates automated assembly processes. The device datasheet provides detailed electrical characteristics, including drain-source voltage (VDS), gate-source voltage (VGS), and drain current (ID) ratings, as well as thermal resistance specifications. Designers should carefully consider these parameters to ensure the MOSFET operates within its safe operating area. Proper PCB layout and heat sinking techniques may be necessary to manage thermal dissipation, especially in high-current applications. The T1 suffix indicates tape and reel packaging for automated assembly, and the E3 suffix signifies compliance with RoHS (Restriction of Hazardous Substances) standards, indicating that the device is lead-free. Consult the official Vishay datasheet for the most accurate and up-to-date specifications before incorporating this component into a design.
