The Si5933CDC-T1-E3 is a dual P-channel FET manufactured by Vishay. It belongs to the Si5933CDC family and is part of the Discrete Semiconductor Products category.

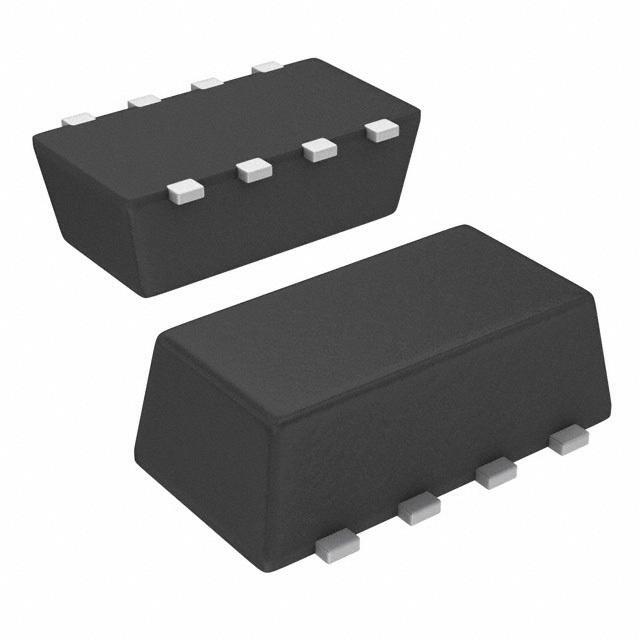

• Mounting: 1206-8 ChipFET
• Maximum Power Dissipation: 2.8W
• Operating Temperature Range: -55°C to 150°C
• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current @ 25°C: 3.7A
• Gate-Source Threshold Voltage: 1V @ 250μA
• Maximum Gate Charge: 6.8nC @ 5V
• Maximum Input Capacitance: 276pF @ 10V
• Maximum Rds On @ Id,Vgs: 144 mOhm @ 2.5A, 4.5V
• Introduction Date: August 2008
• Usage: Common-used part
• Popularity: High
