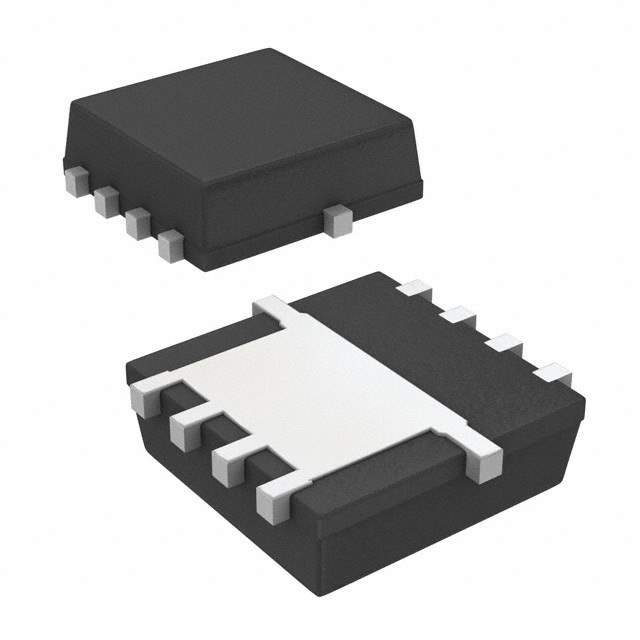

SI7802DN-T1-E3 Real Image
Same model may have multiple batches, images only for reference.

SI7802DN-T1-E3

Part No SI7802DN-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 1.24A 1212-8 / Trans MOSFET N-CH 250V 1.24A 8-Pin PowerPAK 1212 T/R
Datasheet
SI7802DN-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Series TrenchFET
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 250V
Current - Continuous Drain (Id) @ 25°C 1.24A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Vgs(th) (Maximum) @ Id 3.6V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 21nC @ 10V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 1.5W (Ta)
Rds On (Maximum) @ Id, Vgs 435 mOhm @ 1.95A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package PowerPAK 1212-8
Package PowerPAK 1212-8
Win Source Part Number 794321-SI7802DN-T1-E3
Popularity Medium
Supply and Demand Status Limited
Family Name Si7802DN
Introduction Date October 18, 2004
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SI7802DN-T1-E3 CAD Model

Description

The Vishay Siliconix Si7802DN MOSFET is a N-channel device.

  • Maximum Drain-Source Voltage: 250V
  • Continuous Drain Current: 1.24A @ 25°C
  • Gate-Source Threshold Voltage: 3.6V @ 250μA
  • Maximum Gate Charge: 21nC @ 10V
  • Maximum Power Dissipation: 1.5W @ Ta
  • Maximum Rds On: 435 mOhm @ 1.95A and 10V
  • Package: PowerPAK 1212-8
  • Mounting: SMD
  • Family Name: Si7802DN
  • Part of the TrenchFET Series: TrenchFET
  • Halogen-Free Standards Compliant: Yes
