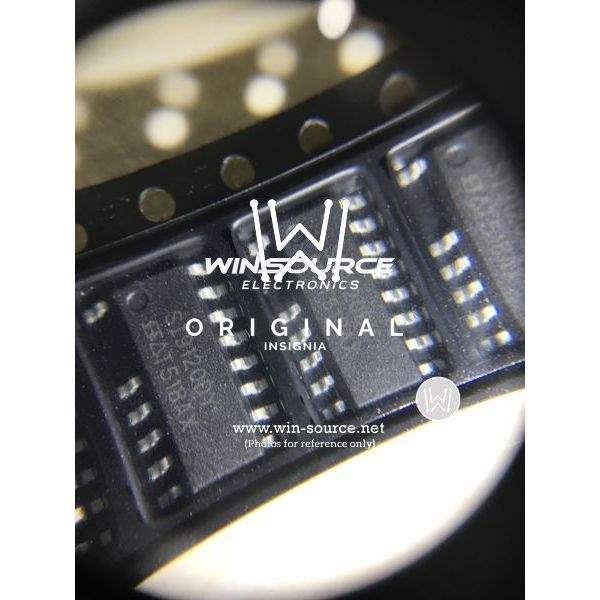

SI9120DY-T1-E3 Vishay SI9120DY-T1-E3 real image
Same model may have multiple batches, images only for reference.
SI9120DY-T1-E3 Vishay SI9120DY-T1-E3 real image
SI9120DY-T1-E3 Vishay SI9120DY-T1-E3 real image
Same model may have multiple batches, images only for reference.

SI9120DY-T1-E3

Part No SI9120DY-T1-E3
Manufacturer Vishay
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC CTRLR UNIV SWMODE 16SOIC / Current Mode PWM Controller 125mA 3000kHz 14-Pin SOIC N T/R
Datasheet
SI9120DY-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Output Isolation Isolated
Topology Flyback, Forward
Supply Voltage - Operating 9.5 V to 13.5 V
Duty Cycle 50%
Frequency - Switching 40kHz to 1MHz
Control Operating Temperature -40°C to 85°C (TA)
Case / Package 16-SOIC
Mounting Surface Mount
Win Source Part Number 143927-SI9120DY-T1-E3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name Si9120
Introduction Date June 22, 1999
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SI9120DY-T1-E3 CAD Model

Description

The Vishay Si9120DY-T1-E3 is an integrated circuit with a flyback and forward topology.

  • Topology: flyback and forward
  • Duty Cycle: 50%
  • Frequency Switching: 40kHz to 1MHz
  • Application: isolated output applications
  • Package: 16-SOIC
  • Supply Voltage: 9.5V to 13.5V
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
  • Alternatives: UCC3813PW-1G4, UCC2803J, UCC2807N-2G4, and UCC3813PWTR-1
