SIE860DF-T1-E3

Part No SIE860DF-T1-E3
Manufacturer Vishay
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 60A POLARPAK
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 60A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 250μA
Max Gate Charge 105nC @ 10V
Max Input Capacitance 4500pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 5.2W (Ta), 104W (Tc)
Maximum Rds On at Id,Vgs 2.1 mOhm @ 21.7A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

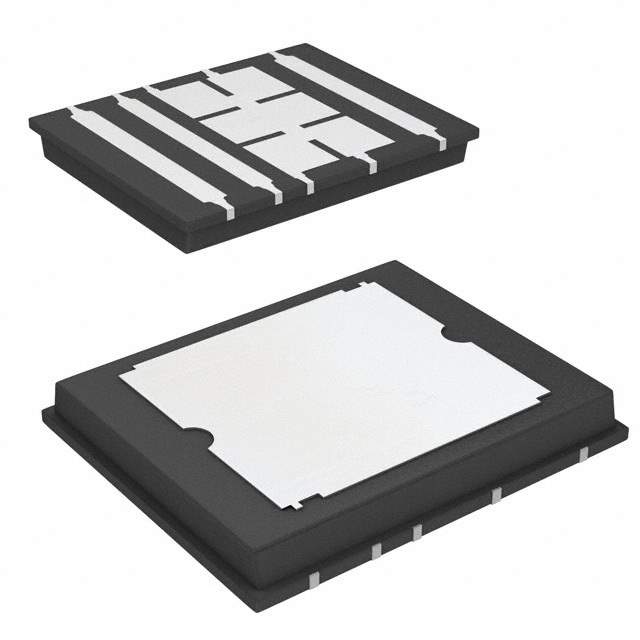

Case / Package 10-PolarPAK (M)
Dimension 10-PolarPAK (M)
Win Source Part Number 042629-SIE860DF-T1-E3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SIE860DF-T1-E3 CAD Model

Description

The Vishay SIE860DF-T1-E3 is a dual N-Channel 30 V (VDS) MOSFET in a PowerPAK® SO-8 single package. These devices are designed to minimize the on-state resistance (RDS(on)) while maintaining superior switching performance for high efficiency power management applications.

Applications

  • Synchronous Rectification: Used in synchronous rectification circuits in power supplies and DC-DC converters, improving efficiency by replacing diodes with MOSFETs.
  • Load Switching: Employed as load switches for controlling power to various components or subsystems in electronic devices.
  • Power Management in Portable Devices: Suitable for power management in smartphones, tablets, and laptops due to its compact size and high efficiency.
  • DC-DC Conversion: Found in DC-DC converters for voltage regulation and power conversion in a wide range of electronic devices.
  • Battery Management Systems (BMS): Can be integrated into BMS for battery charging and discharging control.

Features

  • Low On-State Resistance (RDS(on)): Minimizes power loss and improves efficiency. With an RDS(on) as low as 4.5 mΩ at VGS = 10 V, the device reduces heat generation and maximizes power delivery.
  • High-Density Cell Design: Utilizes an advanced trench MOSFET technology for optimal power density and switching performance.
  • Compact PowerPAK® SO-8 Package: Space-saving design for high-density circuit boards.
  • Lead (Pb)-free and Halogen-free: Compliant with environmental regulations.
  • 30V Drain-Source Voltage (VDS): Suitable for a variety of low-voltage applications.

Benefits

  • Increased Efficiency: Low RDS(on) reduces power losses, leading to higher efficiency in power conversion circuits.
  • Reduced Heat Dissipation: Lower on-resistance results in less heat generation, improving thermal management and system reliability.
  • Smaller Footprint: The PowerPAK® SO-8 package enables compact designs, saving valuable board space.
  • Enhanced System Reliability: Robust design ensures reliable operation in demanding applications.
  • Environmentally Friendly: Lead-free and halogen-free construction meets environmental standards.

Additional Details

The SIE860DF-T1-E3 from Vishay operates effectively within a temperature range of -55°C to +150°C, making it suitable for various environmental conditions. The gate threshold voltage (VGS(th)) is typically around 2.0 V, ensuring compatibility with standard logic-level gate drives. This MOSFET is designed for optimal performance in high-frequency switching applications, providing fast switching speeds and low gate charge.

The PowerPAK® SO-8 package offers excellent thermal performance, allowing the device to handle high current levels without overheating. The dual N-Channel configuration provides flexibility in circuit design, enabling the use of this MOSFET in a wide range of topologies.

Overall, the Vishay SIE860DF-T1-E3 is a high-performance, efficient, and compact MOSFET suitable for a wide range of power management applications. Its low on-state resistance, excellent switching characteristics, and robust design make it an ideal choice for synchronous rectification, load switching, and DC-DC conversion.
