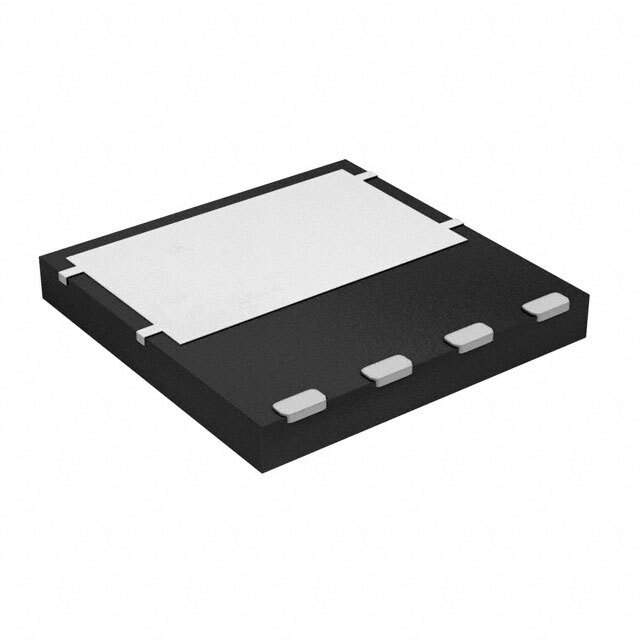

Same model may have multiple batches, images only for reference.

SIRA64DP-T1-RE3

Name: SIRA64DP-T1-RE3
Brand: Vishay
SKU: 978334
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SIRA64DP-T1-RE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 60A PPAK SO-8 / N-Channel 30 V 60A (Tc) 27.8W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SIRA64DP-T1-RE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	TrenchFET® Gen IV
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.1mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 10 V
Vgs (Max)	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds	3420 pF @ 15 V
Power Dissipation (Max)	27.8W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
Base Product Number	SIRA64
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	SIRA64DP-T1-RE3TR,SIRA64DP-T1-RE3CT,SIRA64DP-T1-RE3DKR,SIRA64DP-T1-RE3-ND
Standard Package	3,000
Win Source Part Number	978334-SIRA64DP-T1-RE3
Ultra Librarian 3D Model	Ultra Librarian SIRA64DP-T1-RE3 CAD Model

Alternative Products

Description

The SIRA64DP-T1-RE3 is a N-channel MOSFET manufactured by Vishay Siliconix.

Drain to Source Voltage: 30V
Continuous Drain Current: 60A (Tc)
Rds On (Max) @ Id, Vgs: 2.1mOhm @ 10A, 10V
Gate Charge (Qg) (Max) @ Vgs: 65 nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 3420 pF @ 15V
Package: PowerPAK® SO-8
Maximum Power Dissipation: 27.8W (Tc)
Category: Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Packaging: Tape & Reel
Supply and Demand Status: balanced
