The SIS438DN is a P-Channel power MOSFET manufactured by Vishay. It is designed for applications requiring efficient power switching with low on-resistance. This MOSFET is commonly used in load switches, DC-DC converters, power management circuits, and other applications where efficient power control is essential. Its low on-resistance minimizes power losses, resulting in improved system efficiency and reduced heat generation.

Applications

• Load Switches: Used as a load switch to control power distribution and reduce standby power consumption.
• DC-DC Converters: Employed in DC-DC converters for efficient power conversion and voltage regulation.
• Power Management Circuits: Integrated into power management circuits for efficient power control and distribution.
• Battery Management Systems: Used in battery management systems (BMS) for efficient charging and discharging of batteries.
• Motor Control: Used for low power motor control applications.

Features

• Low On-Resistance: Minimizes power losses and improves overall efficiency.
• P-Channel Configuration: Suitable for high-side switching applications.
• Logic-Level Gate Drive: Can be driven directly by logic-level signals, simplifying circuit design.
• Fast Switching Speed: Enables high-frequency operation with minimal switching losses.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Increased Efficiency: Low on-resistance reduces power dissipation, resulting in higher overall system efficiency.
• Simplified Design: Logic-level gate drive simplifies circuit design and reduces component count.
• Reduced Heat Generation: Low on-resistance minimizes heat generation, improving system reliability.
• Compact Design: Enables smaller and more compact designs in power conversion systems.
• Improved Thermal Performance: Designed for efficient heat dissipation.

Additional Details

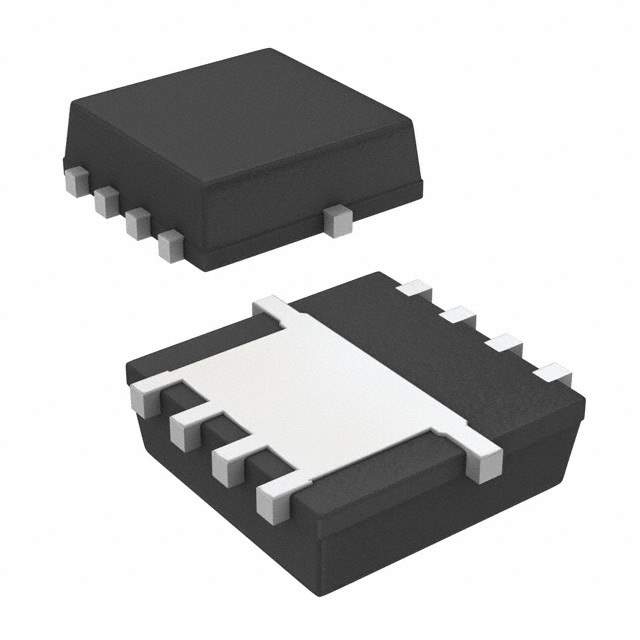

The SIS438DN is typically available in a PowerPAK® SO-8 or similar surface-mount package for efficient heat dissipation and compact PCB layout. Key specifications include a drain-source voltage (VDS) of -30V, a continuous drain current (ID) of up to -7.5A, and a typical on-resistance (RDS(on)) of around 25 mΩ at a gate-source voltage (VGS) of -10V. The operating junction temperature range is typically from -55°C to +150°C. The specific datasheet from Vishay provides detailed electrical characteristics, thermal resistance values, and package dimensions.
