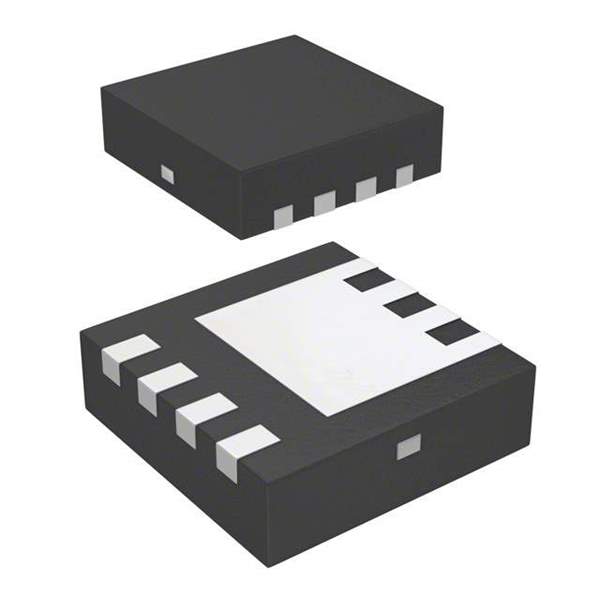

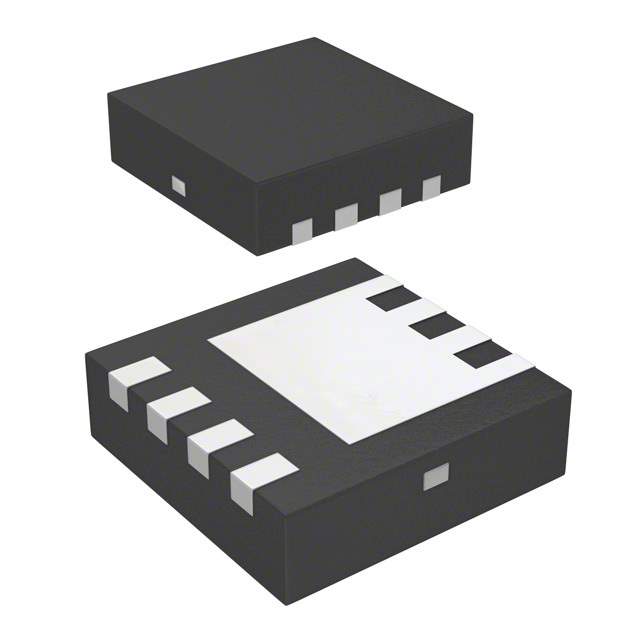

SISS05DN-T1-GE3

Name: SISS05DN-T1-GE3
Brand: Vishay
SKU: 1277613
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SISS05DN-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SISS05DN-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	TrenchFET® Gen IV
Package	Tape & Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	29.4A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	115 nC @ 10 V
Vgs (Max)	+16V, -20V
Input Capacitance (Ciss) (Max) @ Vds	4930 pF @ 15 V
Power Dissipation (Max)	5W (Ta), 65.7W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® 1212-8S
Package / Case	PowerPAK® 1212-8S
Base Product Number	SISS05
Other Names	SISS05DN-T1-GE3CT,SISS05DN-T1-GE3DKR,SISS05DN-T1-GE3TR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1277613-SISS05DN-T1-GE3
Ultra Librarian 3D Model	Ultra Librarian SISS05DN-T1-GE3 CAD Model

Alternative Products

Description

The 1277613-SISS05DN-T1-GE3 is a P-Channel MOSFET from Vishay Siliconix.

Type: TrenchFET Gen IV MOSFET
Drain to Source Voltage: 30V
Continuous Drain Current: 29.4A @ 25°C
Maximum On-Resistance: 3.5mOhm @ 10A and 10V
Gate Threshold Voltage: 2.2V @ 250µA
Gate Charge: 115nC @ 10V
Input Capacitance: 4930pF @ 15V
Maximum Gate-Source Voltage: +16V and -20V
Package: PowerPAK 1212-8S
Operating Temperature Range: -55°C to 150°C
Packaging: tape and reel
ECCN: EAR99
Ideal for: power management applications
