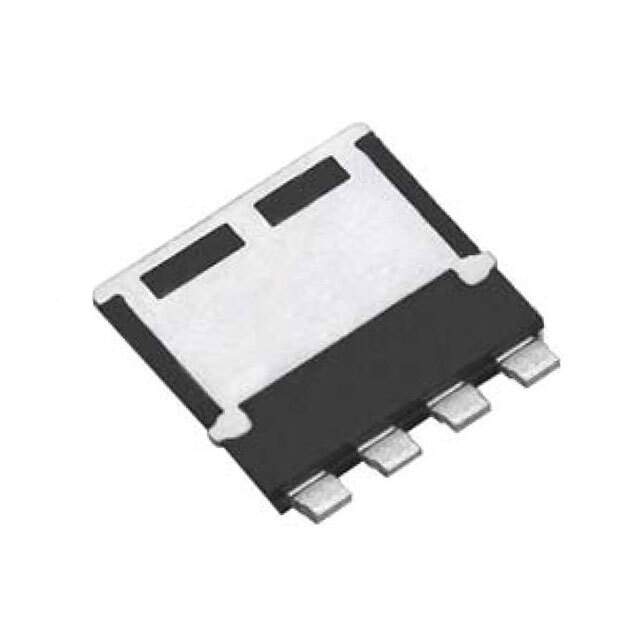

SQJQ100EL-T1_GE3

Name: SQJQ100EL-T1_GE3
Brand: Vishay
SKU: 1277846
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQJQ100EL-T1_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SQJQ100EL-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	220 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14500 pF @ 25 V
Power Dissipation (Max)	150W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	PowerPAK® 8 x 8
Base Product Number	SQJQ100
Other Names	SQJQ100EL-T1_GE3TR,SQJQ100EL-T1_GE3DKR,SQJQ100EL-T1_GE3CT
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1277846-SQJQ100EL-T1_GE3
Ultra Librarian 3D Model	Ultra Librarian SQJQ100EL-T1_GE3 CAD Model

Alternative Products

Description

The SQJQ100EL-T1_GE3 is a N-channel MOSFET transistor from Vishay Siliconix.

Series: Automotive, AEC-Q101, TrenchFET
Mounting Style: SMD (SMT)
Drain to Source Voltage: 40V
Continuous Drain Current: 200A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 1.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id: 2.5V @ 250μA
Maximum Power Dissipation: 150W (Tc)
Package: PowerPAK® 8 x 8
Operating Temperature Range: -55°C to 175°C (TJ)
ECCN: EAR99
