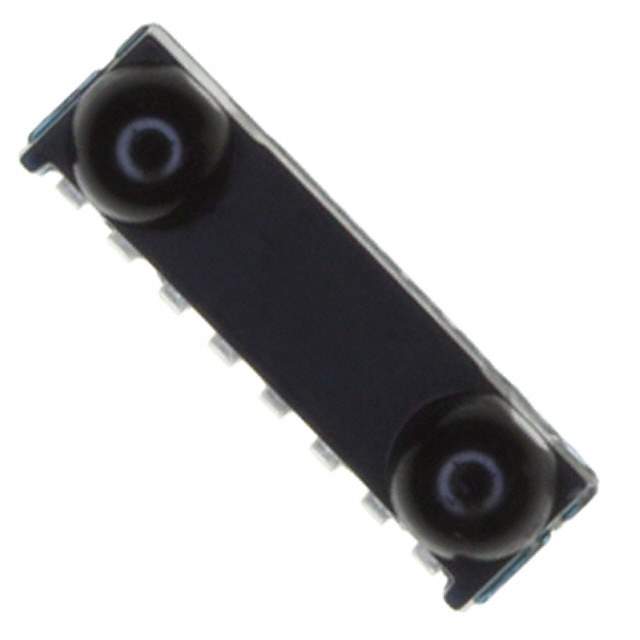

TFDU4300-TR1 Real Image
Same model may have multiple batches, images only for reference.

TFDU4300-TR1

Part No TFDU4300-TR1
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description Infrared Transceiver Module (SIR, 115.2 kbit/s)
Datasheet
TFDU4300-TR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Part Status Obsolete(EOL)
Data Rate 115.2kbs (SIR)
Supply Voltage 2.4 V ~ 5.5 V
Idle Current, Typ @ 25°C 75μA
Link Range, Low Power 70cm
Orientation Side View
Operating Temperature Range -30°C ~ 85°C
Size 8.5mm x 2.9mm x 2.5mm
Standards IrPHY 1.0
Shutdown Yes
Win Source Part Number 1266843-TFDU4300-TR1
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name TFDU4300
Introduction Date August 07, 2003
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TFDU4300-TR1 CAD Model

Description

The Vishay Semiconductor Opto Division TFDU4300-TR1 is a side view sensor that is perfect for a variety of applications.

  • Data Rate: 115.2kbs (SIR)
  • Size: 8.5mm x 2.9mm x 2.5mm
  • Supply Voltage: 2.4 V ~ 5.5 V
  • Link Range, Low Power: 70cm
  • Shutdown Feature: Available
  • Package: Reel - TR
  • Introduction Date: August 07, 2003
  • Estimated EOL Date: Obsolete
  • ECCN: EAR99
  • Other Part Numbers: LT1328CS8, LT1328CMS8#TRM, and LT1328CMS8#TRMPBF
