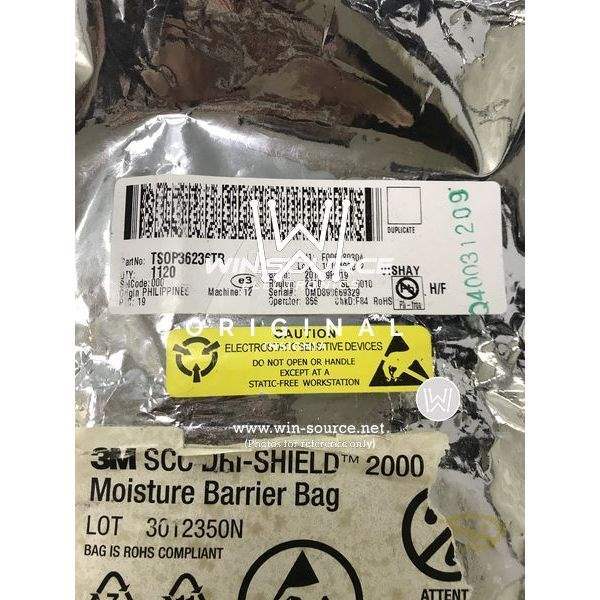

TSOP36236TR Real Image TSOP36236TR label picture
Same model may have multiple batches, images only for reference.
TSOP36236TR Real Image TSOP36236TR label picture
TSOP36236TR Real Image TSOP36236TR label picture
Same model may have multiple batches, images only for reference.

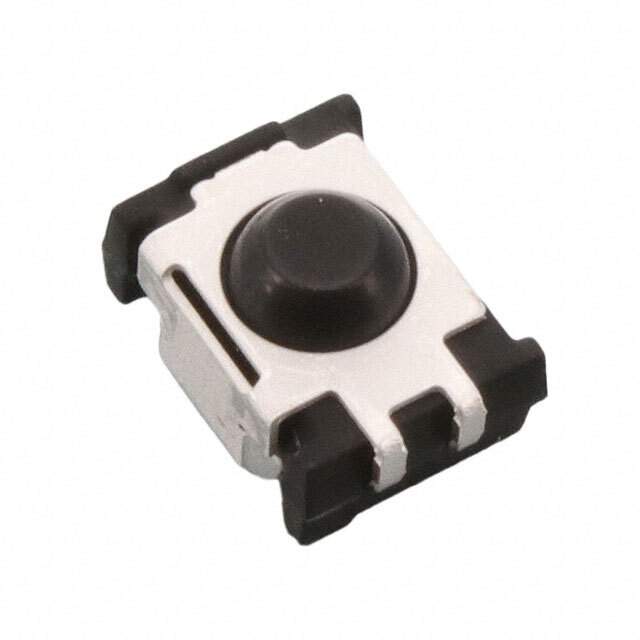

TSOP36236TR

Part No TSOP36236TR
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IR Remote Receiver 36kHz 100° 24m 4-Pin SMD T/R / MOD IR RCVR 36KHZ SIDE VW SMD
Datasheet
TSOP36236TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 350μA
Orientation Side or Top View
Mounting SMD (SMT)
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057159-TSOP36236TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TSOP36236__
Introduction Date May 28, 2003
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TSOP36236TR CAD Model

Description

The TSOP36236TR is an active sensor and transducer from Vishay.

  • Sensing Distance: 45m
  • Operating Supply Current: 350μA
  • Temperature Range: -25°C to 85°C (TA)
  • Operating Supply Voltage: 2.5 V to 5.5 V
